This page covers everything about Hoorpendar: what we do, our milestones, technical data for every product and our project record. You can print it or save it as a PDF.
- +25
- years of experience
- 138
- contracts delivered
- +25
- clients
- 45
- products in the catalogue
About Hoorpendar
Building equipment for power plants, dams and oil and gas since 1999
Hoorpendar Computer Technology Industries, a knowledge-based company founded in 1999, designs and manufactures specialised electronic equipment and delivers electrical, control, automation and instrumentation projects. We have completed many EPC projects in oil and gas, water and power, and steel, and in most of them we designed and built the hardware ourselves.
Our clients are dams and power plants, oil and gas operators, the national meteorological network and other key industries. Most of what we build has to run continuously in harsh conditions: heat, vibration, humidity, strong magnetic fields and surges from switching and lightning. In power plant control, drinking water supply or an oil and gas pumping station, even a short stop is expensive.
Many of our projects were research programs carried out for the first time in Iran, among them generator excitation for a power plant, a digital hydro-turbine governor, a two-axis laser crydoscope and a meteorological data switching network. Few companies both deliver electrical, instrumentation and automation projects and design industrial electronics for series production. Hoorpendar does both.
What we do
We work in four areas
Order a single piece of equipment, or hand us a complete system from design to commissioning.
- 1
Equipment design and manufacture
We build industrial electronics, especially for turbines and generators.
- Generator excitation and control systems
- Flame and fire detectors
- Ignition systems for turbines, boilers and furnaces
- Battery chargers and industrial power supplies
- Alarm annunciators and instrumentation
- 2
Industrial projects
We design and deliver projects on an EPC basis.
- PLC-based automation and control
- Monitoring and data acquisition (SCADA/DCS)
- Measurement, data transmission and telemetry
- Alarm, fault and fire alarm systems
- Fibre-optic networks, power and lighting
- 3
Legacy system renewal
We extend the life of equipment that no longer has manufacturer support.

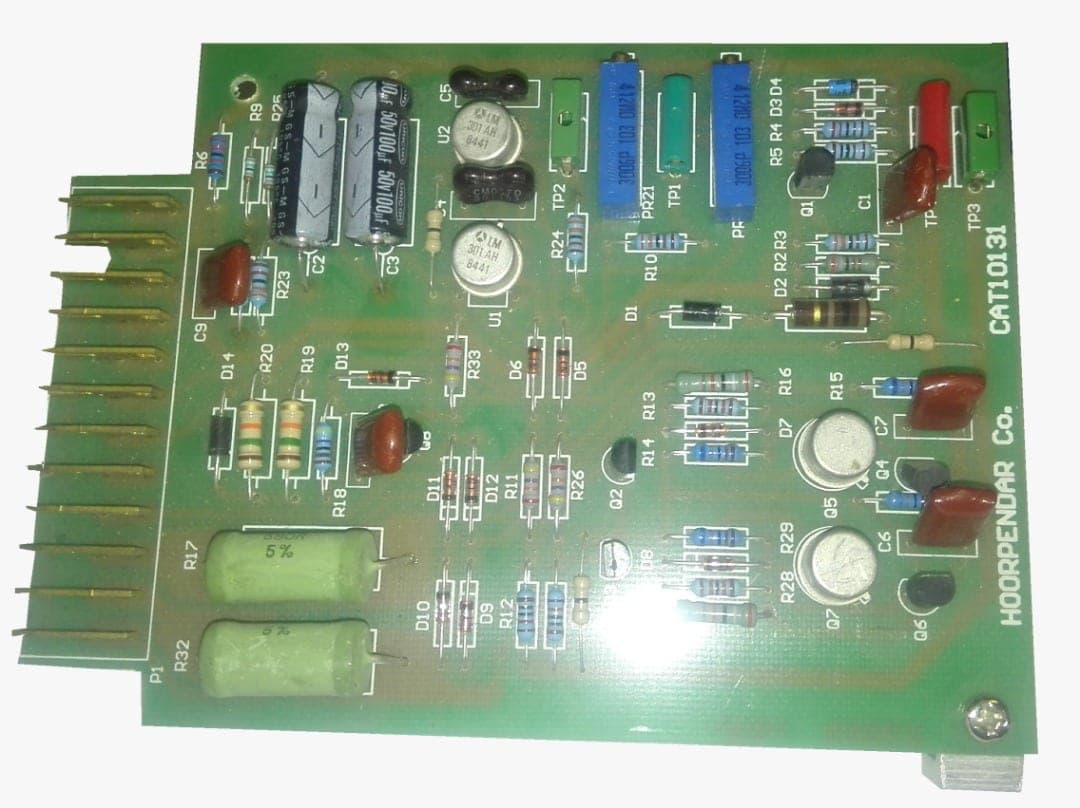

- Rebuilding electronic cards and boards
- New circuit designs with available parts
- Schematic capture and functional analysis
- Upgrading older excitation and control systems
- 4
Engineering services
Alongside manufacturing, we offer these specialist services.
- PID tuning of governor and excitation systems
- Repair of specialised electronic equipment
- Testing and calibration of instruments
- Upgrade studies and feasibility assessments
- Installation, commissioning and long-term support
Firsts and milestones
Work we did first in Iran
2001
Iran’s first domestically built static excitation system
We designed and built the excitation unit for a hydroelectric generator. Since then we have produced many static excitation systems for generators and synchronous motors, one of them rated at 1,200 A.
2001–2003
Intelligent control of drinking water transfer
We designed a fully redundant control system that automatically regulates water flow from a dam to a metropolitan area, and built its equipment ourselves.
2005–2006

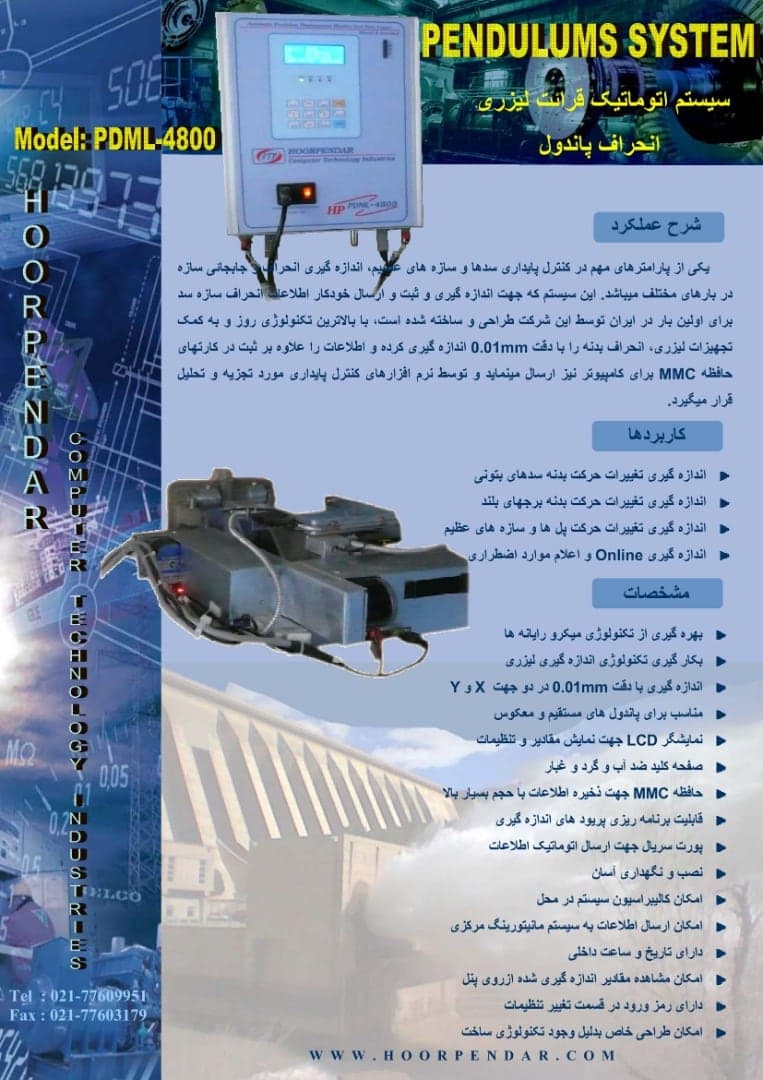

Laser crydoscope for dam monitoring
It records dam-body movement on two axes (X and Y) to within 0.01 mm, without touching the structure.
2007–2011
Excitation and AVR for 3.5 MW synchronous motors
We built static excitation control and starters for synchronous motors at oil and gas pumping and compression stations. In 2017 we delivered 40 more excitation control units for the same motors.
2012–2013
Iran’s first digital hydro-turbine governor
In a research program we designed and built the PLC-based DHTG-300 digital governor, and gained our know-how in turbine speed control, hydraulics and servo valves along the way.
2013

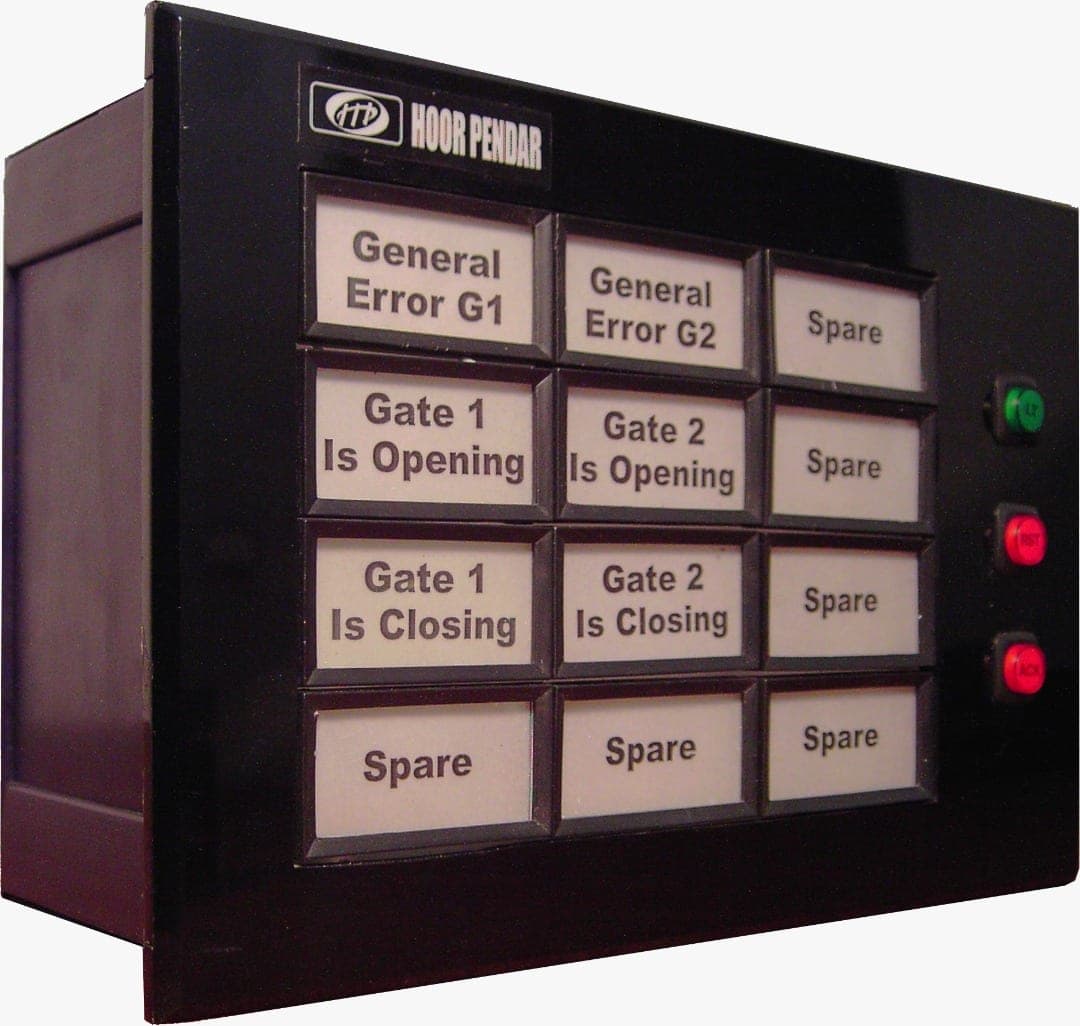

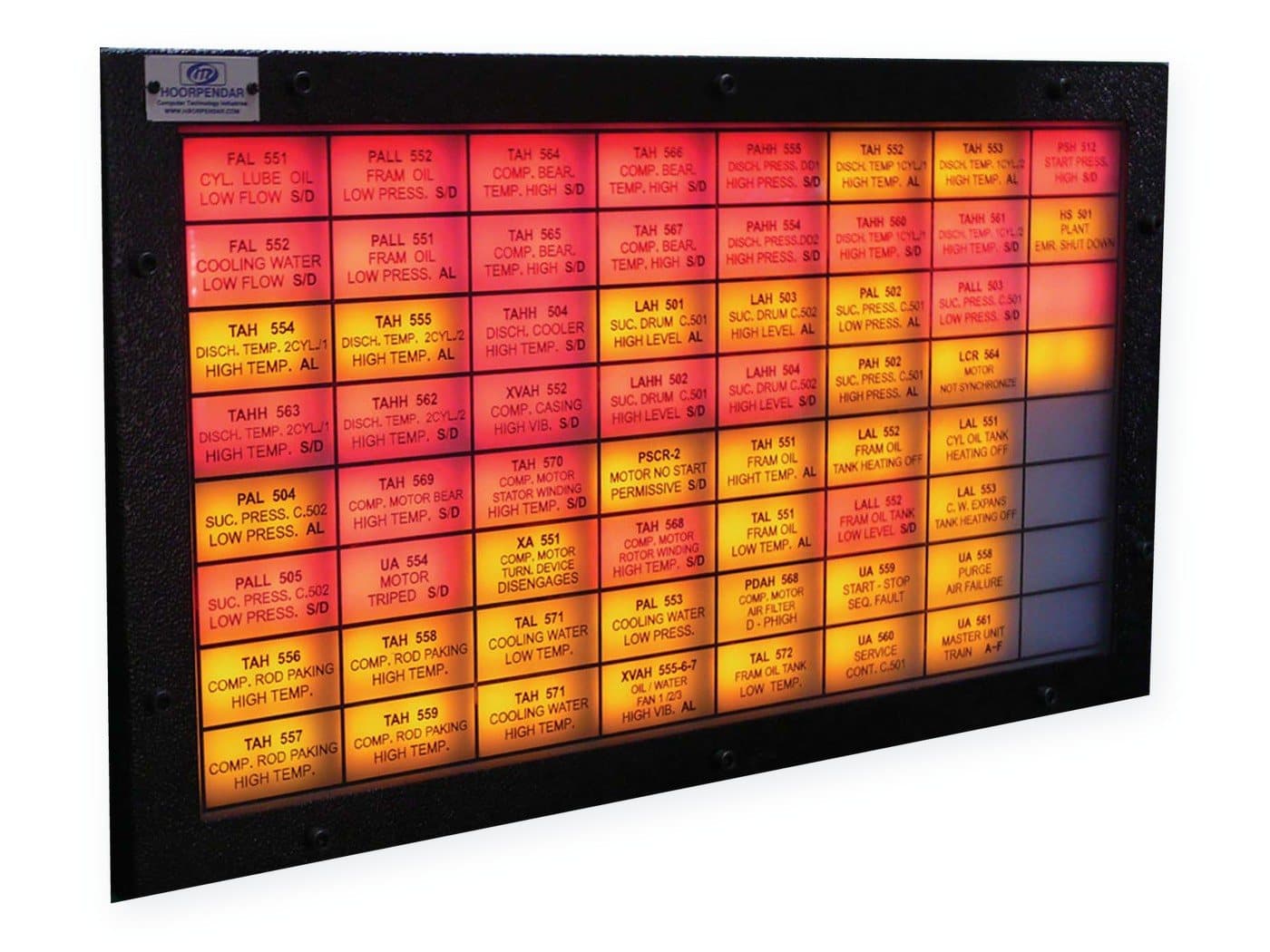

800 alarm annunciator signals
We built and delivered alarm annunciators covering 800 signals for the plants of an oil and gas operator.
Grid test
A successful black-start test
Part of a province was fully disconnected, and a hydro plant running Hoorpendar’s SECON-2000 excitation and DHTG-300 governor restored it in island mode, holding frequency and voltage through load steps of up to 2.5 MW.
2017

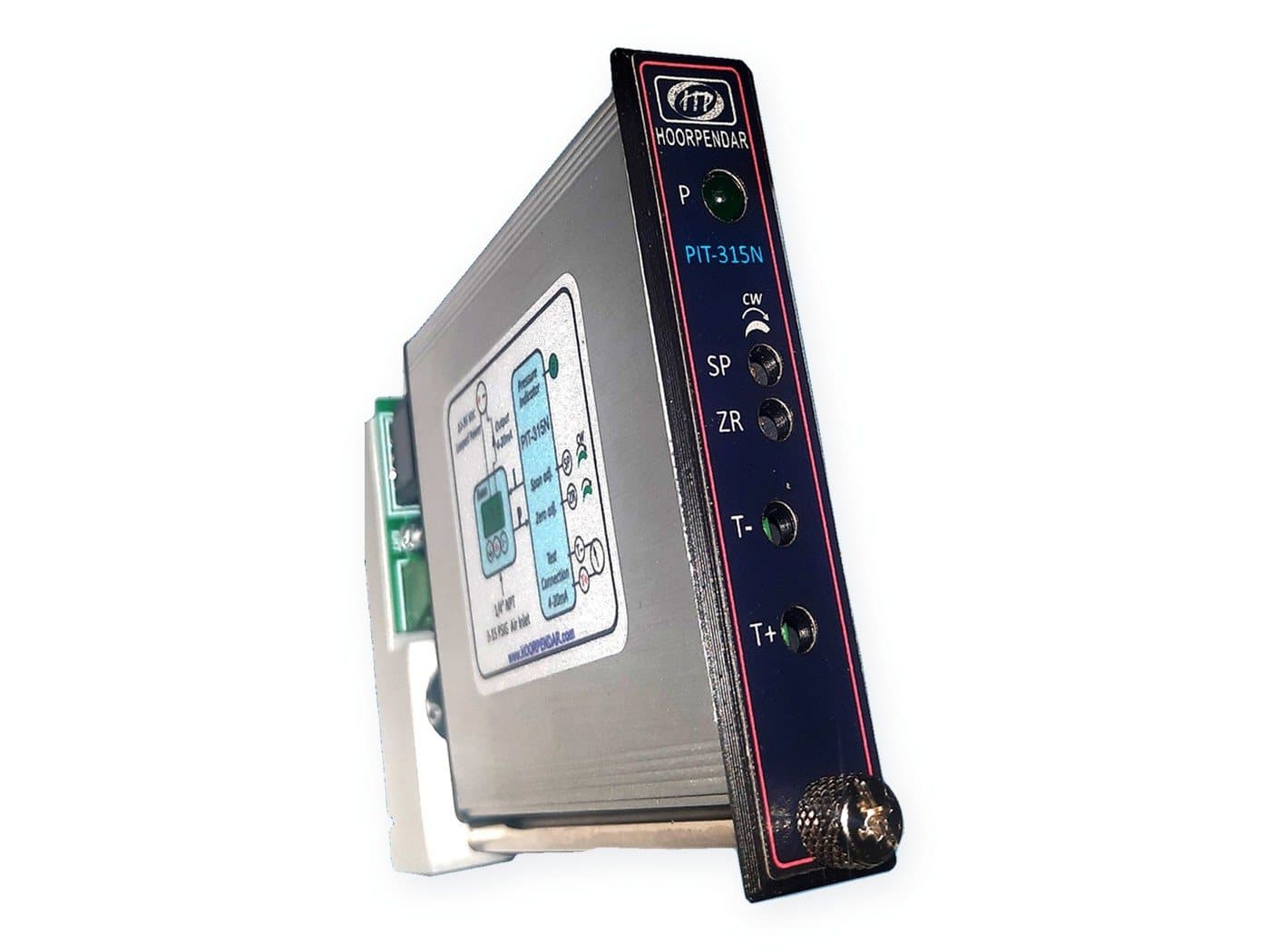

120 pressure-to-current converters in one contract
We delivered 120 PI-315 units so that older pneumatic instruments could connect to electronic control systems.
2018 onward
Gas turbine control units
For an oil operator we have designed and built more than ten models of gas turbine control unit, which measure speed and temperature and control the fuel valve. The work is still going on.
2021
Contactless position sensor at 60 bar
The sensor measures gas turbine inlet guide vane position and works inside the hydraulic actuator, at 60 bar, on an offshore facility.
2022
Locomotive generator excitation
We designed and built a locomotive generator excitation system, with switching converters and drivers made for it.
Product catalogue
Hoorpendar products
We design and manufacture every product below, and most can be built to the voltage, size and specification you need.
Excitation & Governor Systems
4 productsFor generators and synchronous motors we build static and brushless excitation, digital AVRs and hydro-turbine governors.

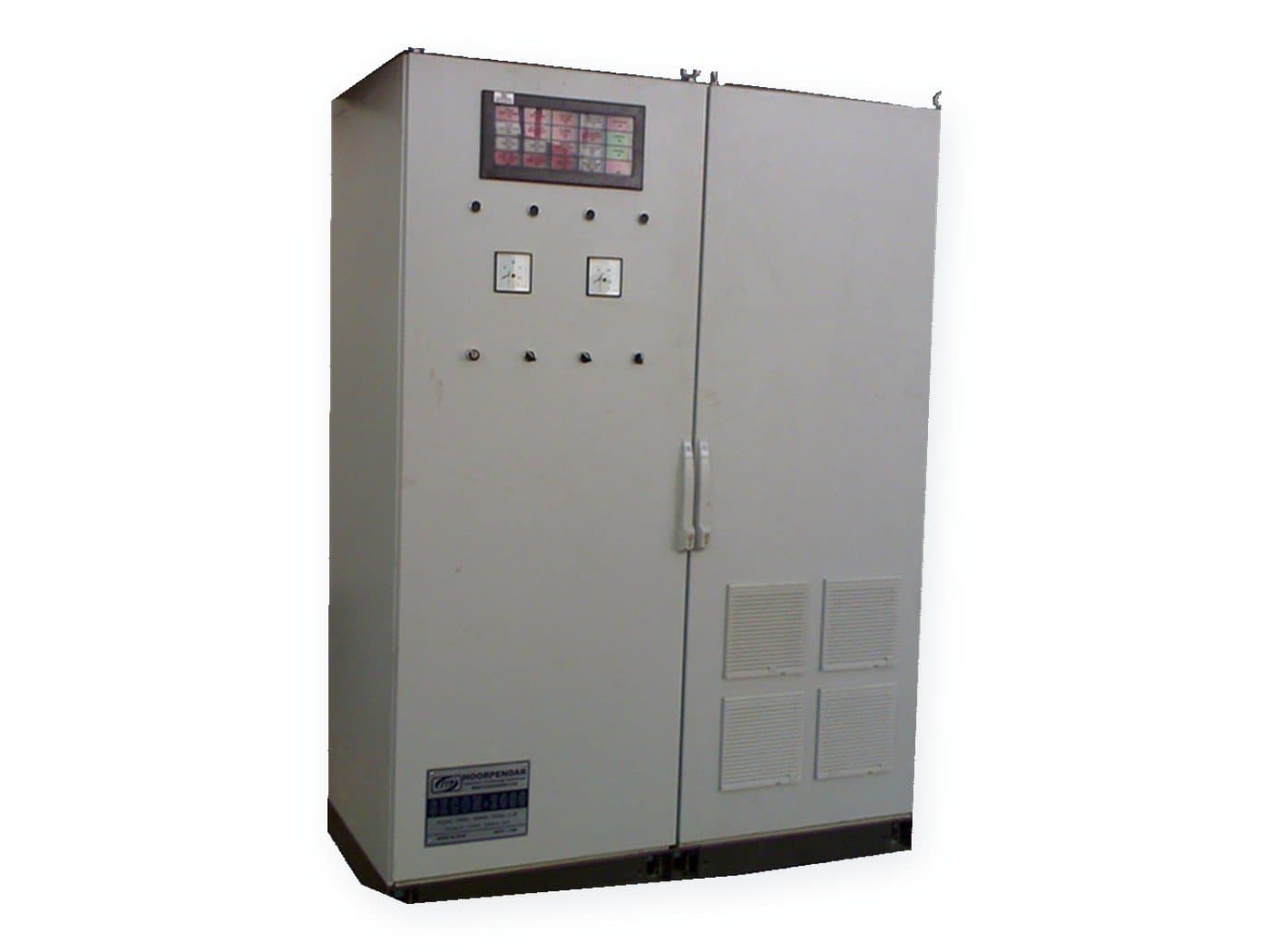

SECON-2000
Thyristor static excitation system with digital AVR
A complete excitation system for synchronous generators, with a PLC-based digital controller, thyristor bridge, firing unit, excitation transformer, metering and a touch HMI. It is designed to IEEE 421.1–421.5.
- Three control modes: voltage, power factor and reactive power
- 12-pulse full-wave thyristor bridge, with optional redundancy for the controller and bridge
- IGBT-based crowbar, field discharge and field flashing
- Excitation limiters, field over-voltage, V/Hz and under-excitation protection

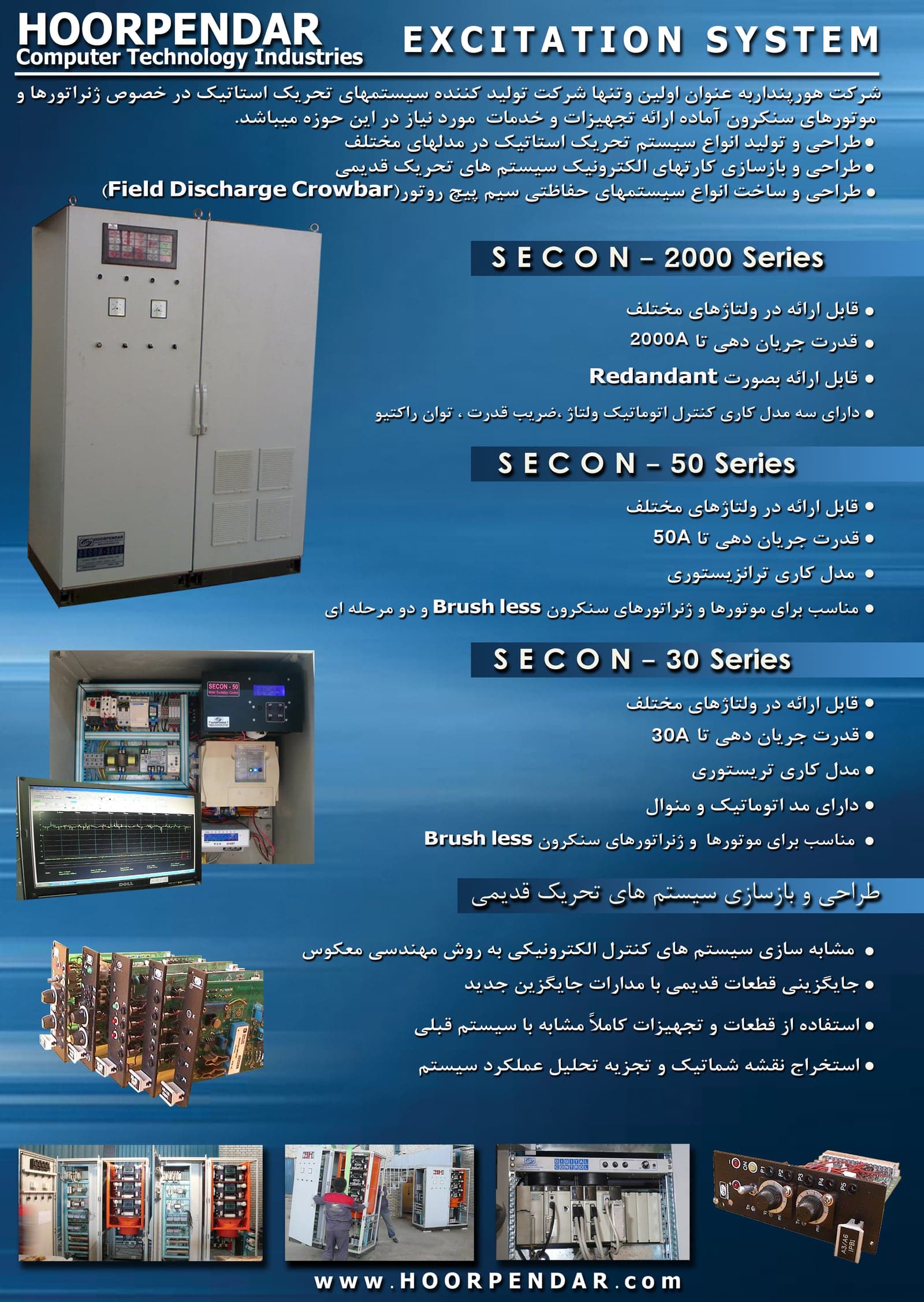

SECON-50 · SECON-30
Excitation for brushless synchronous motors and generators
These low-current systems excite brushless and two-stage synchronous motors and generators. The family also includes excitation control and starters for high-power pumping-station motors.
- SECON-50: up to 50 A, transistor design
- SECON-30: up to 30 A, thyristor design with automatic and manual modes
- Rotor winding crowbar protection matched to the machine
- Automatic voltage and power-factor control for synchronous motors
Generator rotor crowbar protection
A crowbar protects the rotor winding of a synchronous generator from over-voltage and dissipates the energy stored in it. It is usually part of the excitation system, and we design and build each one to order for the generator’s rotor winding.
- Rotor winding over-voltage protection
- Fast field discharge
- Designed to each generator’s rotor winding
- DHTG-300
DHTG-300
Digital hydro-turbine governor
The first digital hydro-turbine governor made in Iran, running on a PLC. It controls turbine speed and load, the hydraulic system and servo valves. A plant fitted with it and a Hoorpendar excitation system energized part of the grid in island mode during a black-start test.
- Speed and power control with PID tuning
- Held frequency under step loads of up to 2.5 MW in island operation
- On-site tuning and commissioning by the Hoorpendar team
Flame & Fire Detection
6 productsThese units, relays and sensors detect flame in turbines, furnaces, boilers and flares. The group also includes fire detectors for hazardous areas.

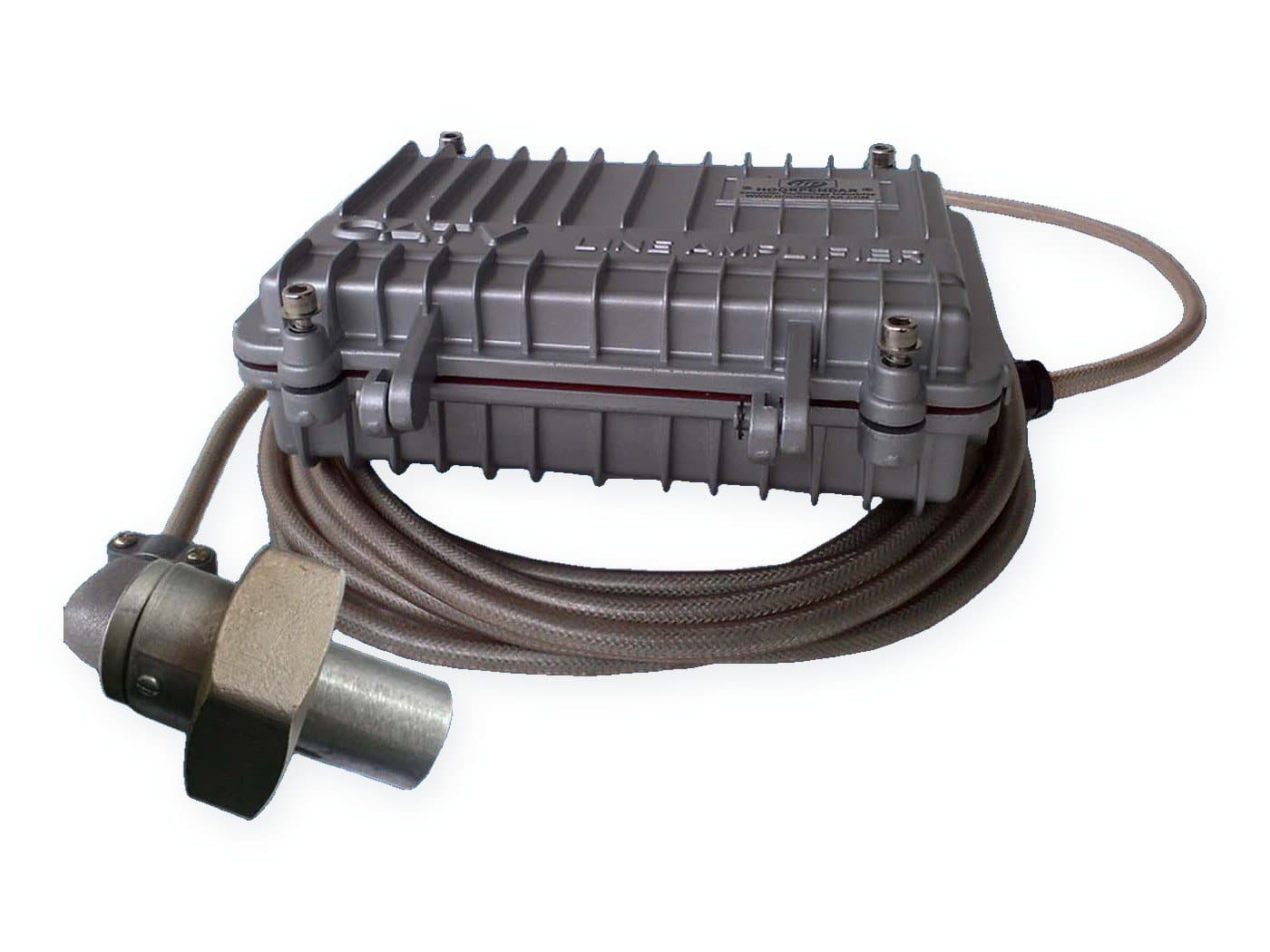

FDU-300 · FDU-320
Turbine combustion-chamber flame detection unit
Monitors the turbine flame in normal running and during ignition, and trips the turbine through its output relay if the flame is lost. More than 200 units are in service.
- Fits a wide range of industrial gas turbines
- Sensor-to-unit cable of 5 to 15 m, fire-resistant with metal braid
- Operates up to 85 °C in a sealed aluminium housing
- Flame-failure relay output with LED indicator and sensitivity potentiometer

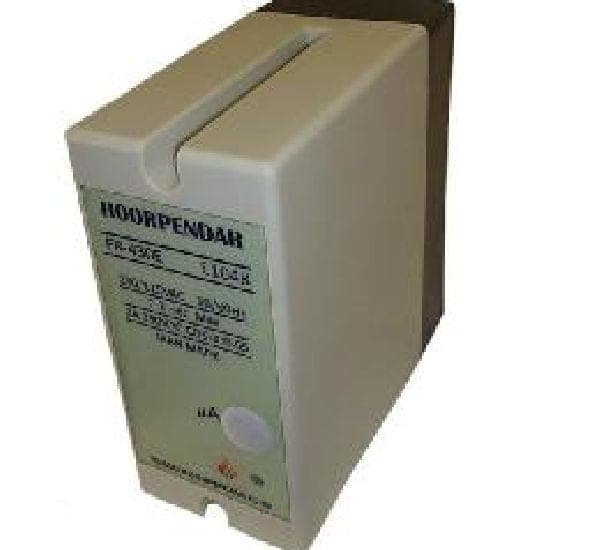

FR-430E · FR-430D
UV and ionization flame relay
Detects flame in turbines, furnaces and boilers. The E model works with a UV sensor; the D model uses a flame rod that measures combustion ionization. Many are in service at oil and gas plants.
- Two separate NO/NC contacts rated 2 A
- Current test socket on the unit shows the flame signal in microamps
- Flame failure detected in under 2 seconds
- Plug-in control unit that comes off its base for repair or replacement

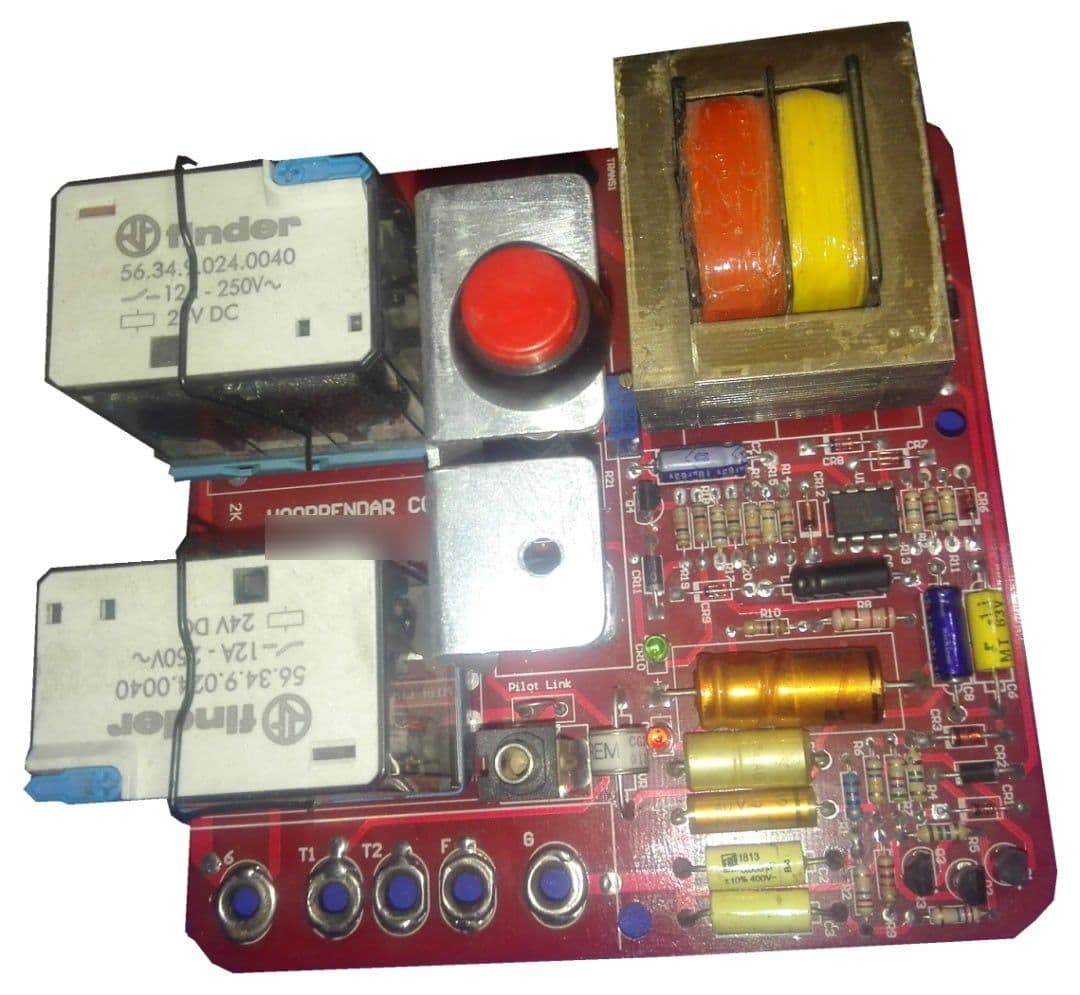

Flame safeguard controller
Proves the pilot flame with a UV or rod sensor before permitting the main fuel valve to open. Supplied with a flame scanner in an industrial, explosion-proof aluminium housing.
- Two-stage pilot / main relay outputs
- Flame scanner in an explosion-proof body
- Built to the required voltage and size

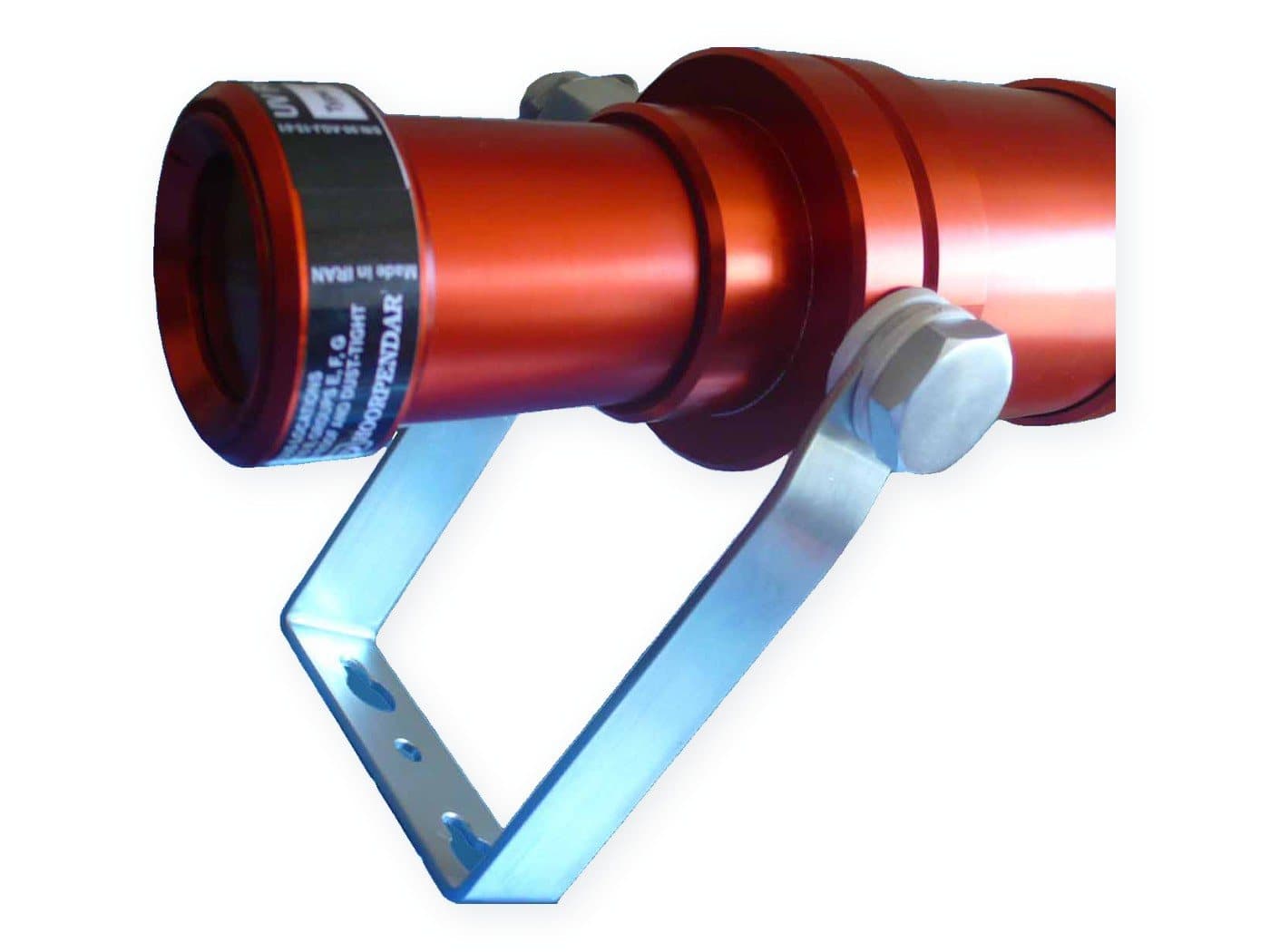

UFD-760
UV fire detector for hazardous areas
Continuous fire watch for high-risk areas such as gas compressors and gas turbines. It took two years of in-house research and development.
- Detects a 1 cm² flame at 5 m
- CPLD logic; blind to sunlight
- Fail-safe NO/NC contacts
- Explosion-proof stainless steel or anodized aluminium body

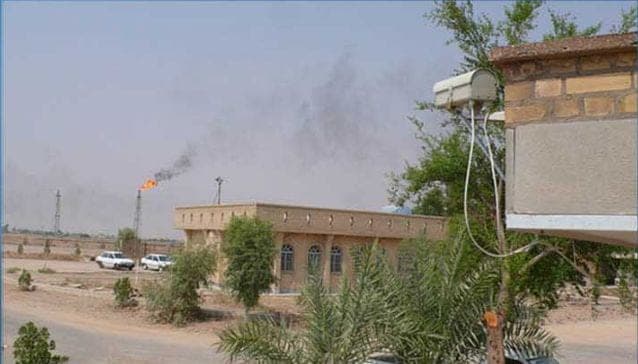

FMS-280
Contactless flare and pilot monitor
Measures flare flame status and size from a distance, reports it to the control room and raises audible and visual alarms on flame-out. Replaces thermocouples that wear out quickly. Installed about 400 m from the flare at a compression station.
- Two flame-out relays (instant and delayed)
- 4–20 mA analog output showing flame size
- Serial port and software that logs flame-size changes
- Alarms tie in with the plant’s existing instrumentation

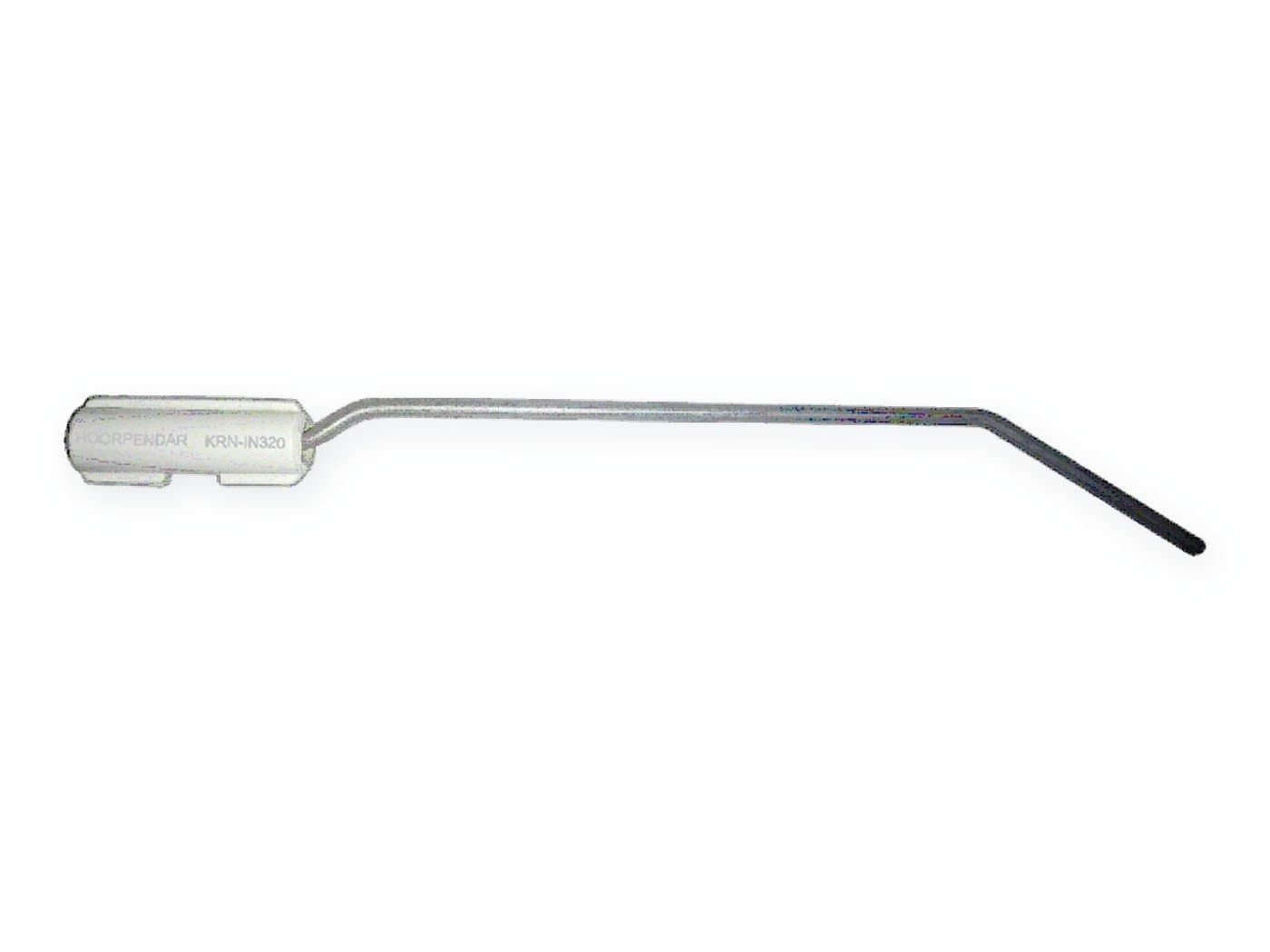

KRN-IN320
Flame sensors and electrodes
We make ionization flame rods with glazed porcelain bodies, and UV and IR sensors for different flame types, in various shapes and sizes to match the customer’s sample.
- Ionization electrode with porcelain body
- UV and IR sensors
- Made to sample
Ignition Systems
8 productsWe build ignition units, exciters, leads and plugs for gas turbines, boilers and furnaces, and supply them in explosion-proof enclosures where needed.

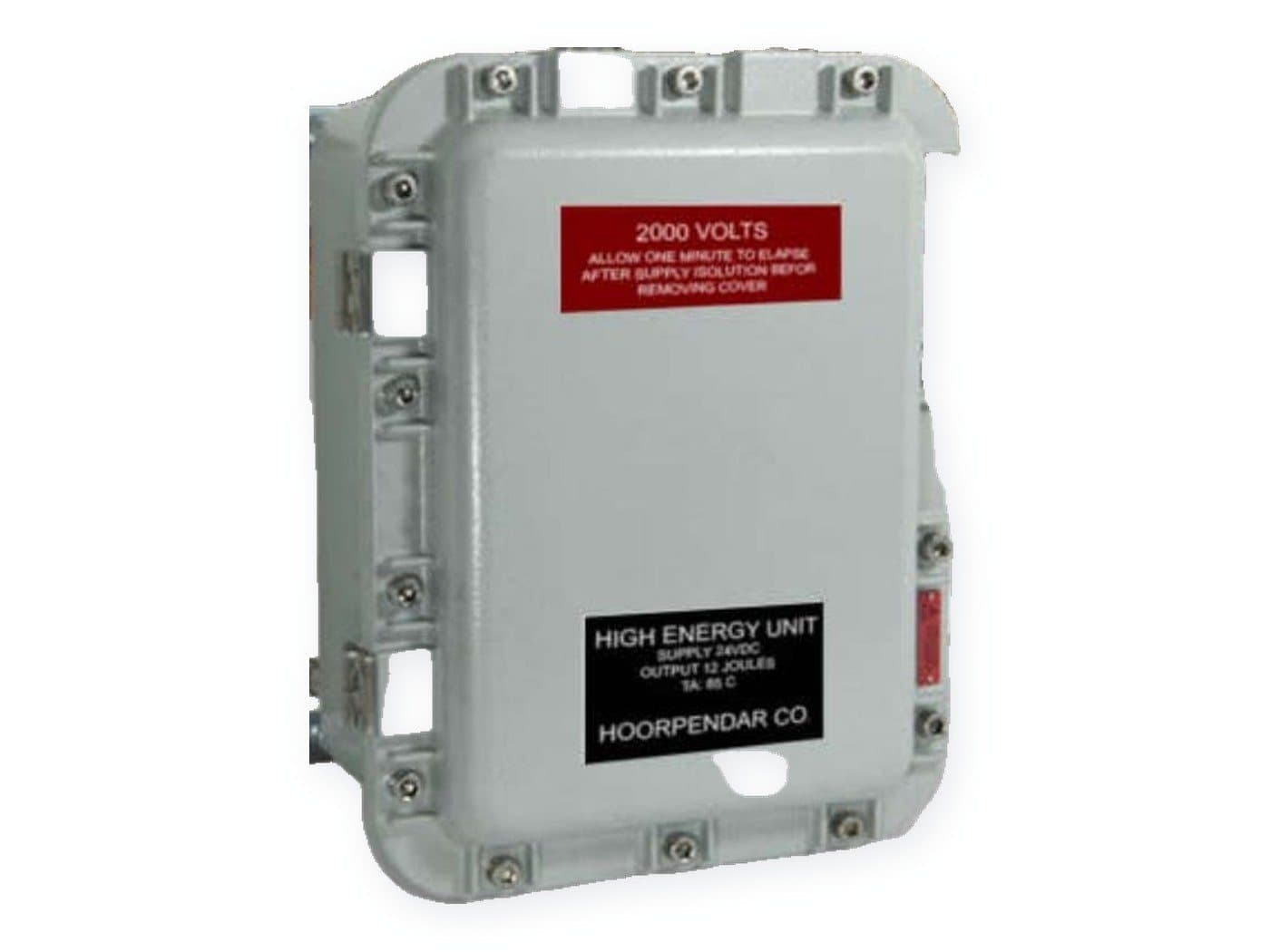

IGRU-200
High-energy gas turbine ignition unit
Lights industrial gas turbine combustors with a high-energy spark, and is housed in an explosion-proof enclosure.
- 24, 48, 110 or 220 V input, AC or DC
- 2000 V DC output at 12 J
- 3 to 5 sparks per second
- Explosion-proof enclosure; up to 85 °C

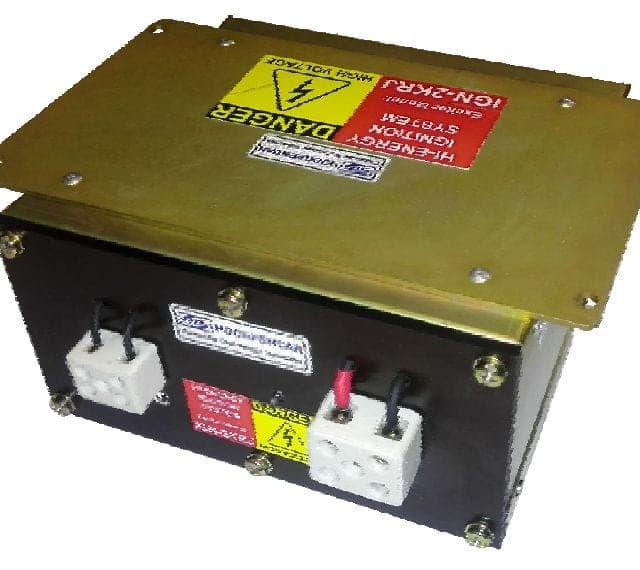

IGN-2KRJ
High-energy ignition exciter for turbines and boilers
Produces a high-voltage, high-energy spark about three times a second. On the matching plugs the spark looks like a flame and lights gas and diesel fuel quickly. The box, size and connectors can be changed to suit the installation, and the unit can be fitted in an Exd explosion-proof enclosure.
- 230/115 V AC or +24 V DC input
- 2000 V DC pulsed output, 3 per second
- Resin-filled metal housing

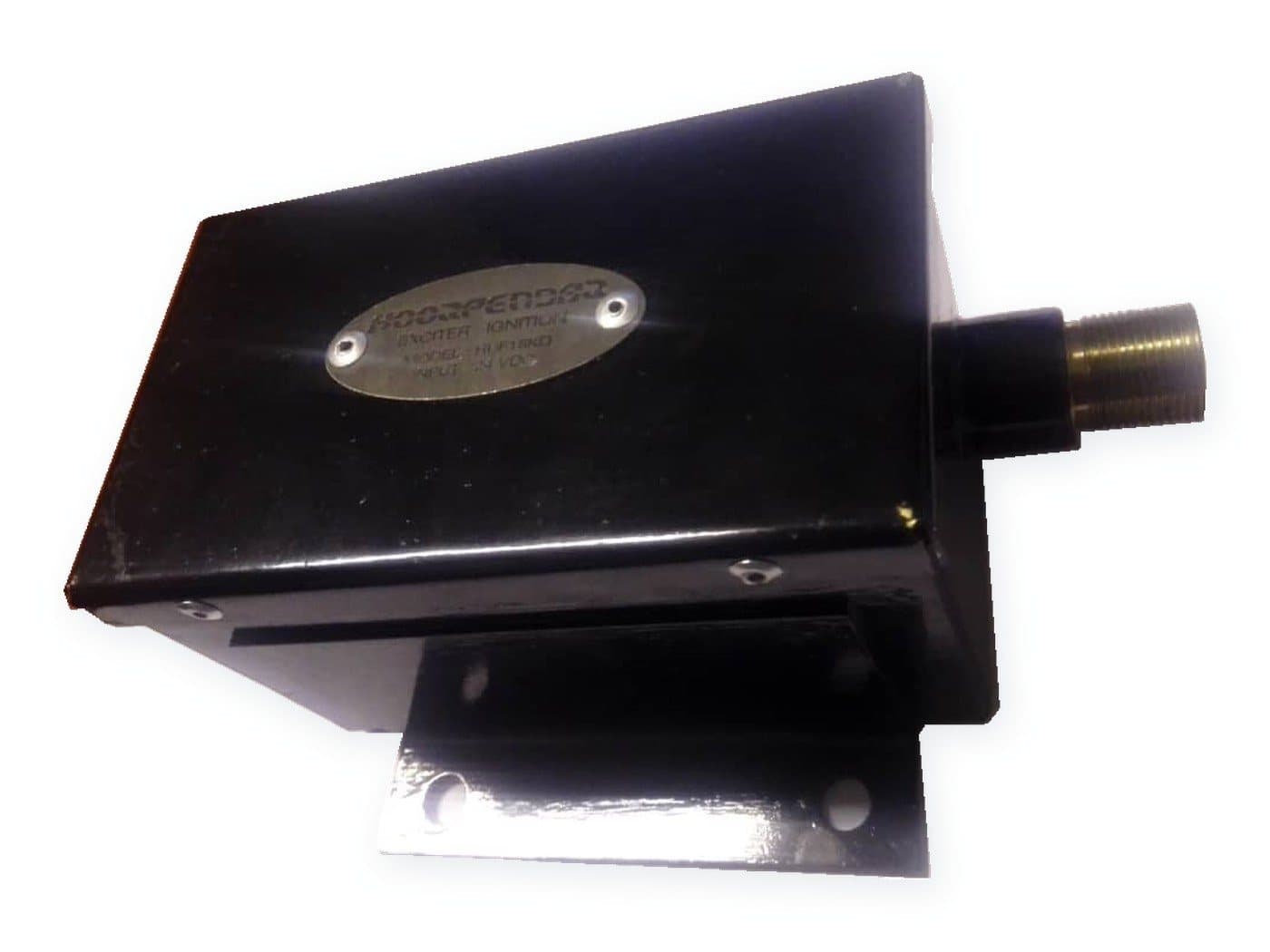

IGN-SL10
18 kV gas turbine ignition exciter
Supplies 18 kV for igniting industrial gas turbines, in a fully potted housing.
- 24 V DC input
- 18 kV output
- High-energy spark, 3 to 4 per second

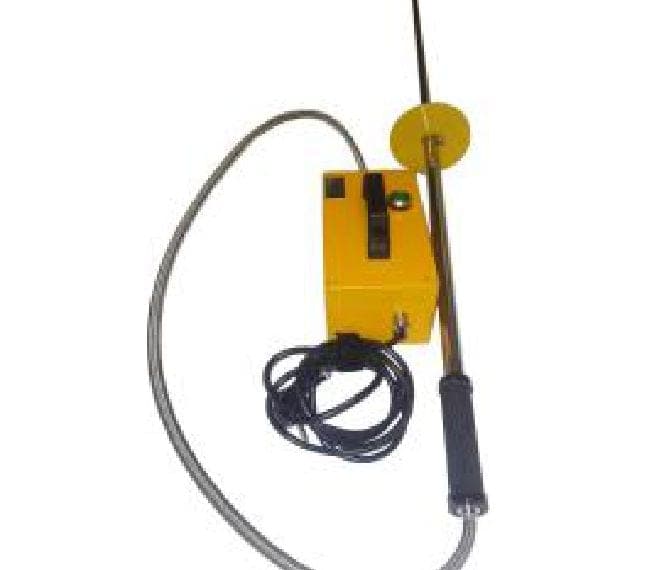

HUP-18KD
Portable burner igniter
Used to light furnace, boiler and preheater burners by hand. Its high-energy pulsed spark lights any fuel. It comes in two versions: the lower-cost one runs from mains power, and the other has a rechargeable battery that lasts a working day on a full charge.
- 220 V AC or 24 V DC battery supply
- 3 to 4 sparks per second
- 100 cm lance with a flashback shield that slides to the position you need
- The plug is easy to remove and replace

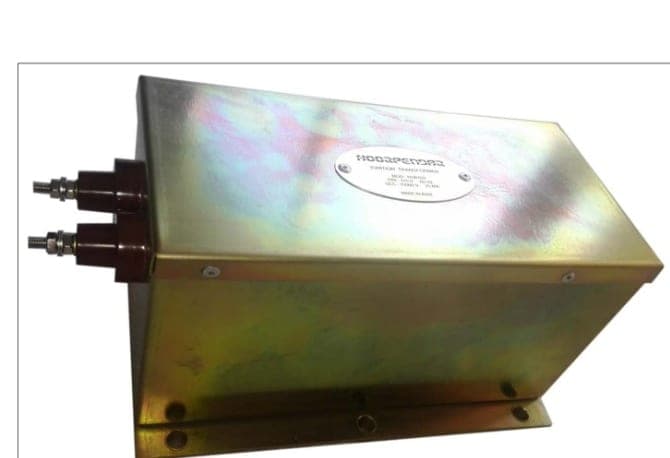

HSB-169
Ignition transformer
Gives furnace and boiler burners a continuous spark from a 15,000 V AC output.
- 115 V AC primary
- 15,000 V AC secondary
- Continuous spark

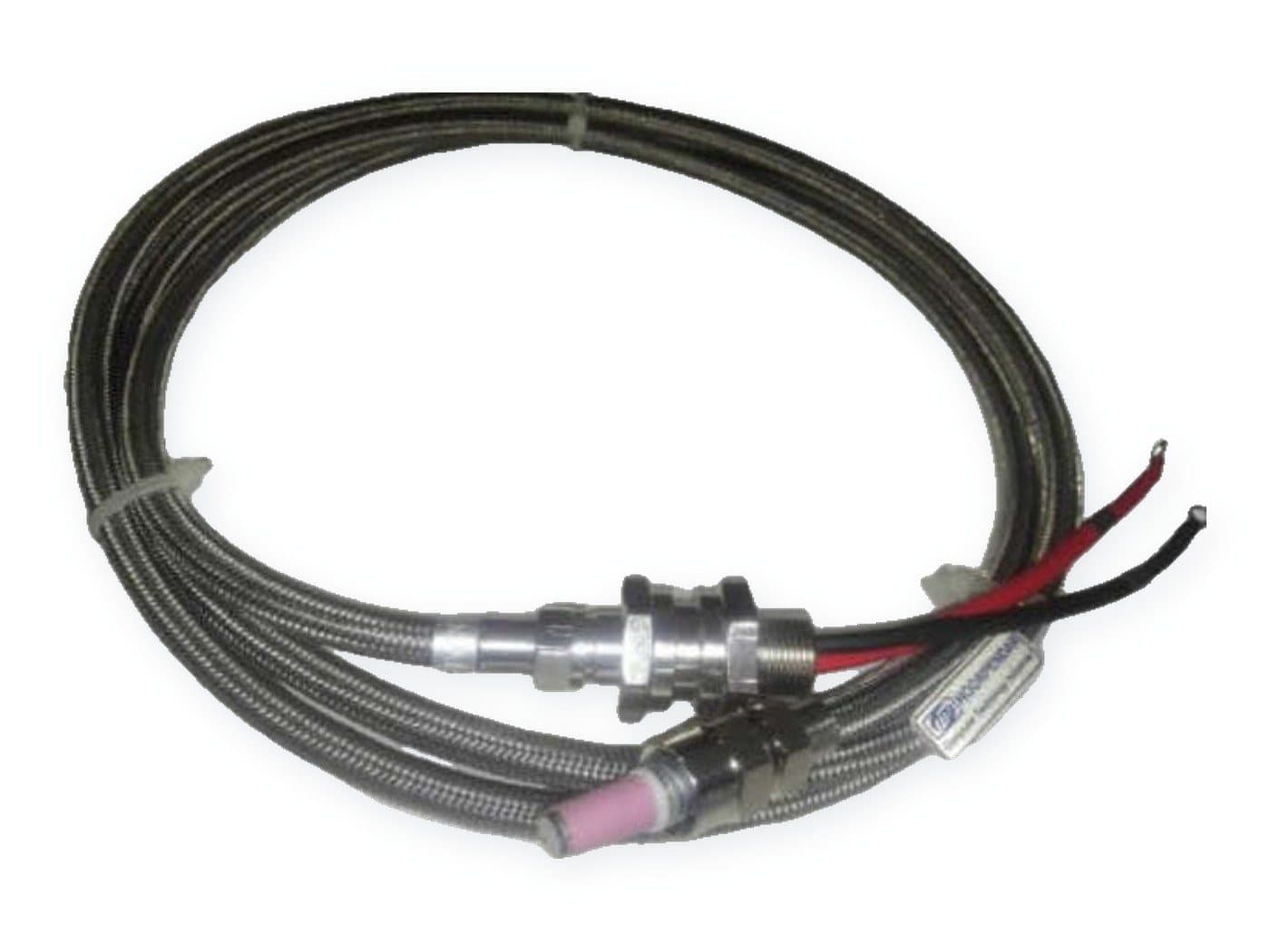

IGRC-202 · IGSC-SL18 · IGNC-W72 · IGNC-RS75
Turbine ignition leads
We make high-voltage ignition leads for a range of industrial gas turbines, in armoured and silicone versions, built to the customer’s sample.
- 20 kV insulation, up to 250 °C, stainless steel armour and nickel-chrome plated brass fittings
- High-voltage silicone lead up to 30 kV
- IGRC-202 and IGSC-SL18: rugged armour and a high-voltage core rated to 200 °C, for high-energy ignition
- IGNC-W72: stainless steel armour, rated to 180 °C; packed five to a box

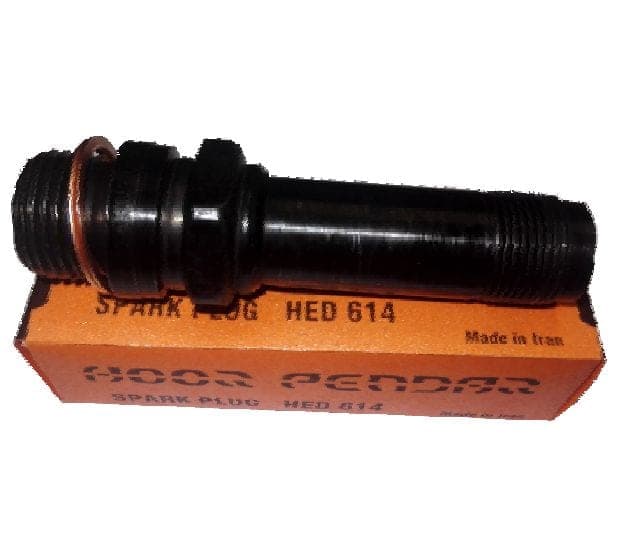

IGRP-120 · HED614 · HSR514 · HNR-100 · HKR-600
Turbine and furnace spark plugs
We make spark plugs for gas turbines, furnaces and boilers, including high-energy and long-electrode versions.
- IGRP-120: stainless steel, rated to 1250 °C; special resistive insulator, very thin insulating shells and a special alloy body
- HED614: sparks up to 20 kV, with very thin insulating shells; HSR514: up to 3 kV
- HNR-100: boiler plug for high-energy pulsed ignition, with a resistive insulator that withstands very high heat
- HKR-600: long-electrode furnace plug up to 15 kV; the spark gap adjusts by at least 25 mm with a lock nut
Complete flare ignition system (pulse ignition probe)
This pulse system lights the flare pilot and relights it if it goes out. It is supplied with its control panel.
- Pulse ignition probe
- Control panel with remote command
- Available in explosion-proof enclosures
Turbine Control & Sensors
4 productsThis equipment monitors speed and temperature on industrial gas turbines, controls the fuel valve and measures position without contact.
Gas turbine speed and temperature monitors
These units measure turbine speed with a magnetic pickup and temperature with thermocouples. They have threshold relays and analog outputs, and come in several ranges.
- Speed: four threshold relays
- Temperature: three threshold relays
- 0–5 V DC and 0–200 µA analog outputs

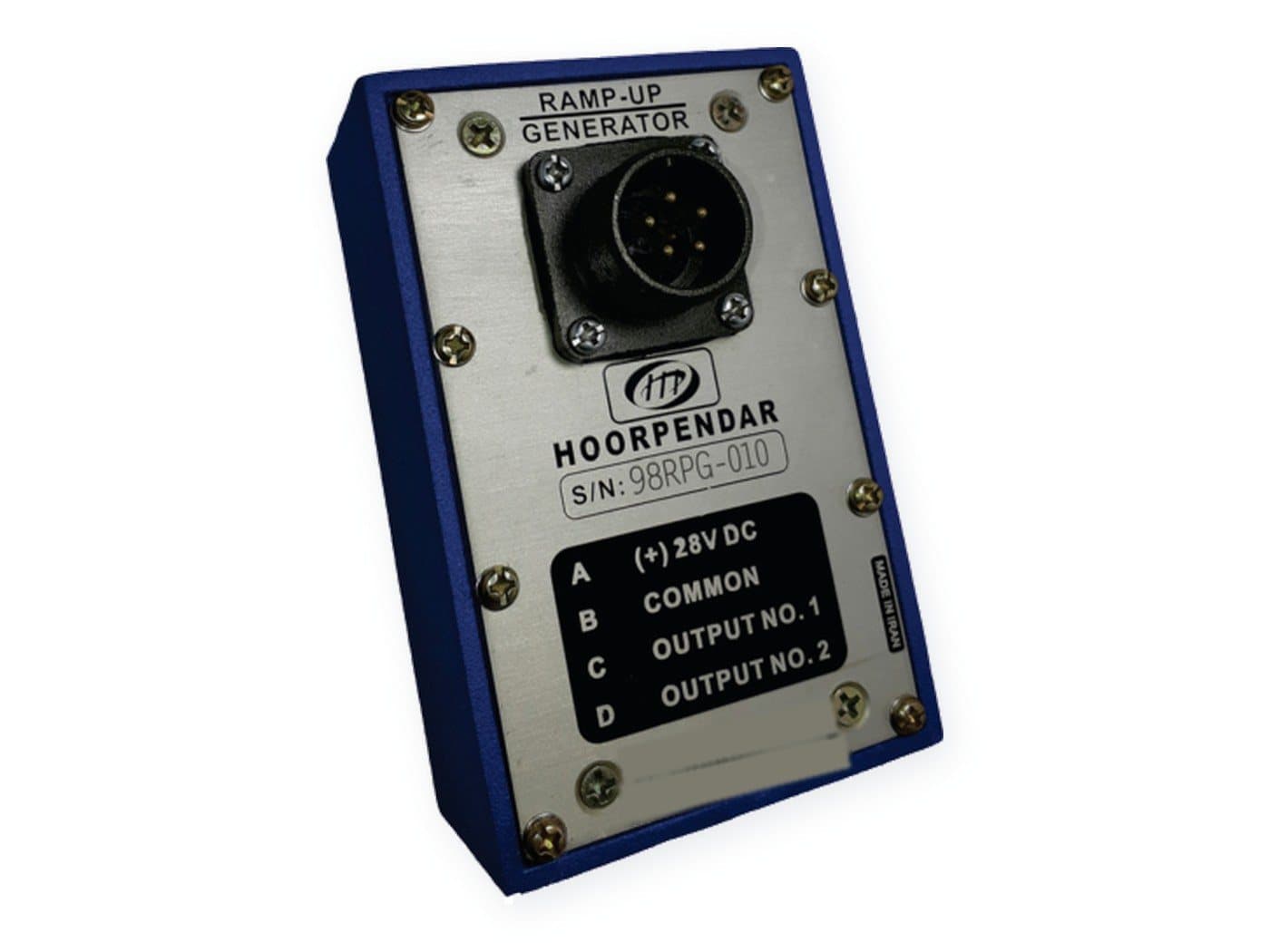

RUG-280
Fuel valve controller and start-up ramp generator
The controller sets the turbine’s main fuel valve from speed and temperature (0–50 mA output), and the RUG-280 ramp generator produces the start-up signal.
- 0–50 mA valve drive output
- +28 V DC ramp generator supply
- Two independent ramp outputs

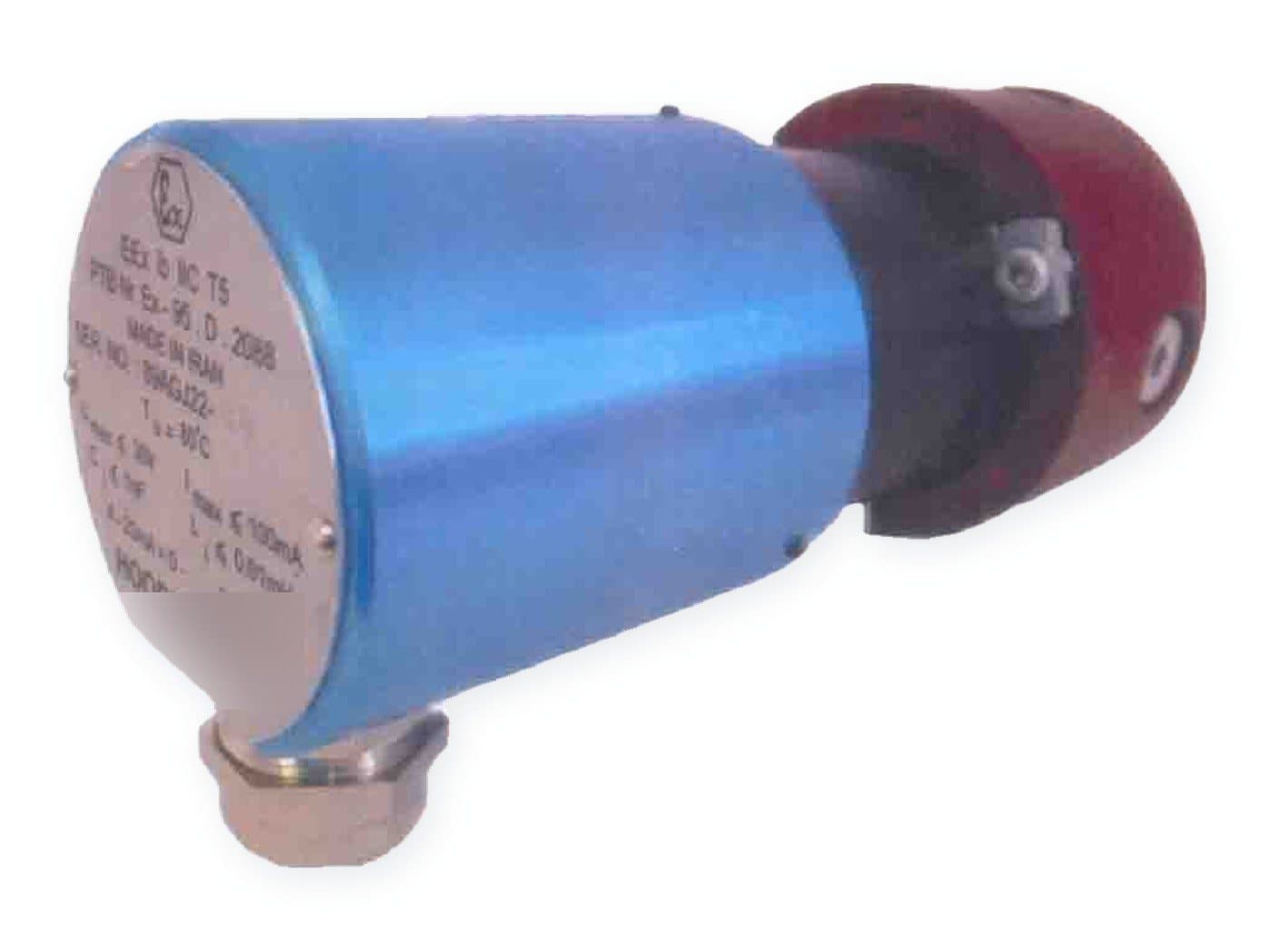

Contactless position transducer
Measures fuel valve and inlet guide vane position with no mechanical wear. It comes in TCV and NGV types with an intrinsically safe (EEx ib) housing. One version sits inside the guide-vane hydraulic actuator: it works in 60 bar hydraulic oil at high temperature, is fast and accurate enough for position control, and brings its signal out through the actuator wall.
- ±45° travel
- 4–20 mA output with zero and span adjustment
- +24 V DC supply; explosion-proof anodized aluminium body
Magnetic speed pickups and turbine speed indicators
Magnetic pickups sense turbine and generator speed, and a digital indicator shows it on the turbine panel.
- Magnetic speed sensor
- Digital indicator with alarm outputs
- Made to sample
Battery Chargers & Power Supplies
7 productsWe build smart battery chargers and industrial and custom power supplies, plus a controller that brings older chargers up to date.

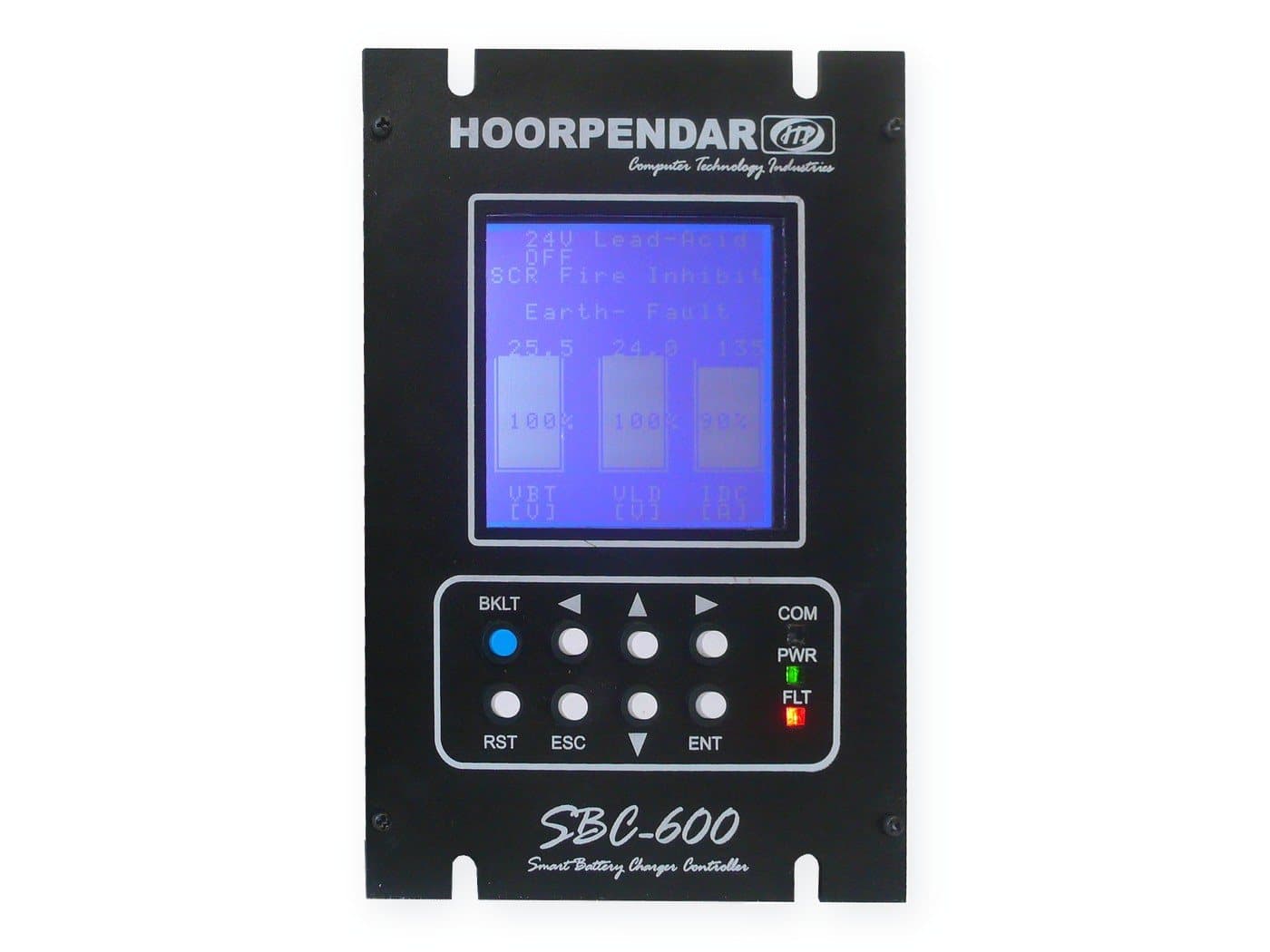

SBC-600 · SBC-620
Smart battery charger controller
Many healthy chargers are taken out of service only because their control cards can no longer be replaced. This controller fits most thyristor chargers and turns them into modern units. The SBC-620 upgrades three-phase chargers.
- 24 to 110 V DC battery voltage; 6- and 3-thyristor bridges
- Graphic LCD, PID control, time-stamped fault log
- Modbus RTU over RS-485/232
- Load sharing and dropper-diode control in up to 4 steps

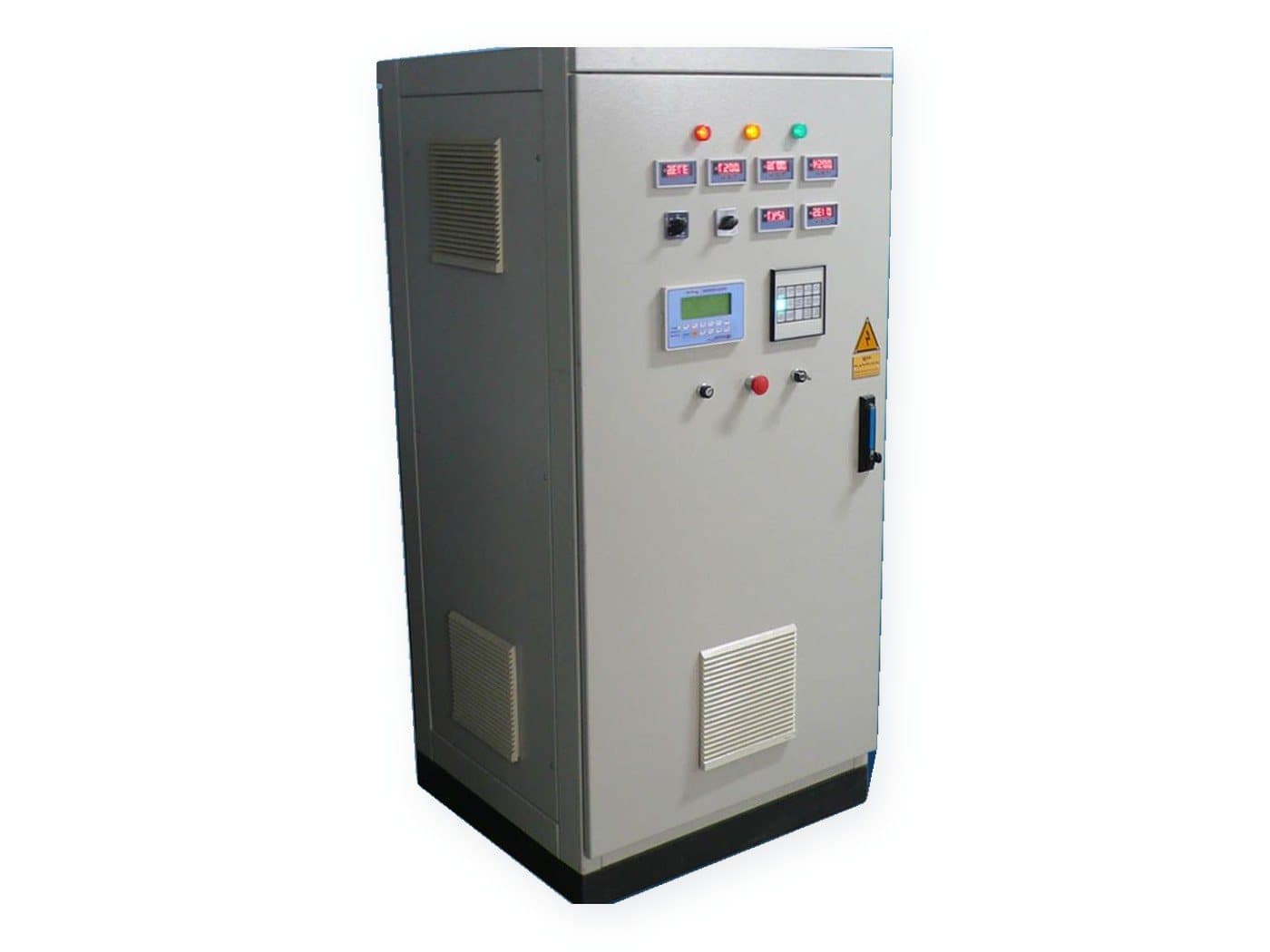

SMART-128
Smart single- and three-phase battery charger
Its HP-PC128 controller follows the charging curve for the battery type and count, and controls load voltage with multi-stage dropper diodes.
- Float, boost, initial and manual modes
- Two-stage constant-current / constant-voltage charging with full protection
- Status over Modbus; load sharing for parallel chargers
- Time-stamped fault log, including input under-voltage, output short circuit and overcharge

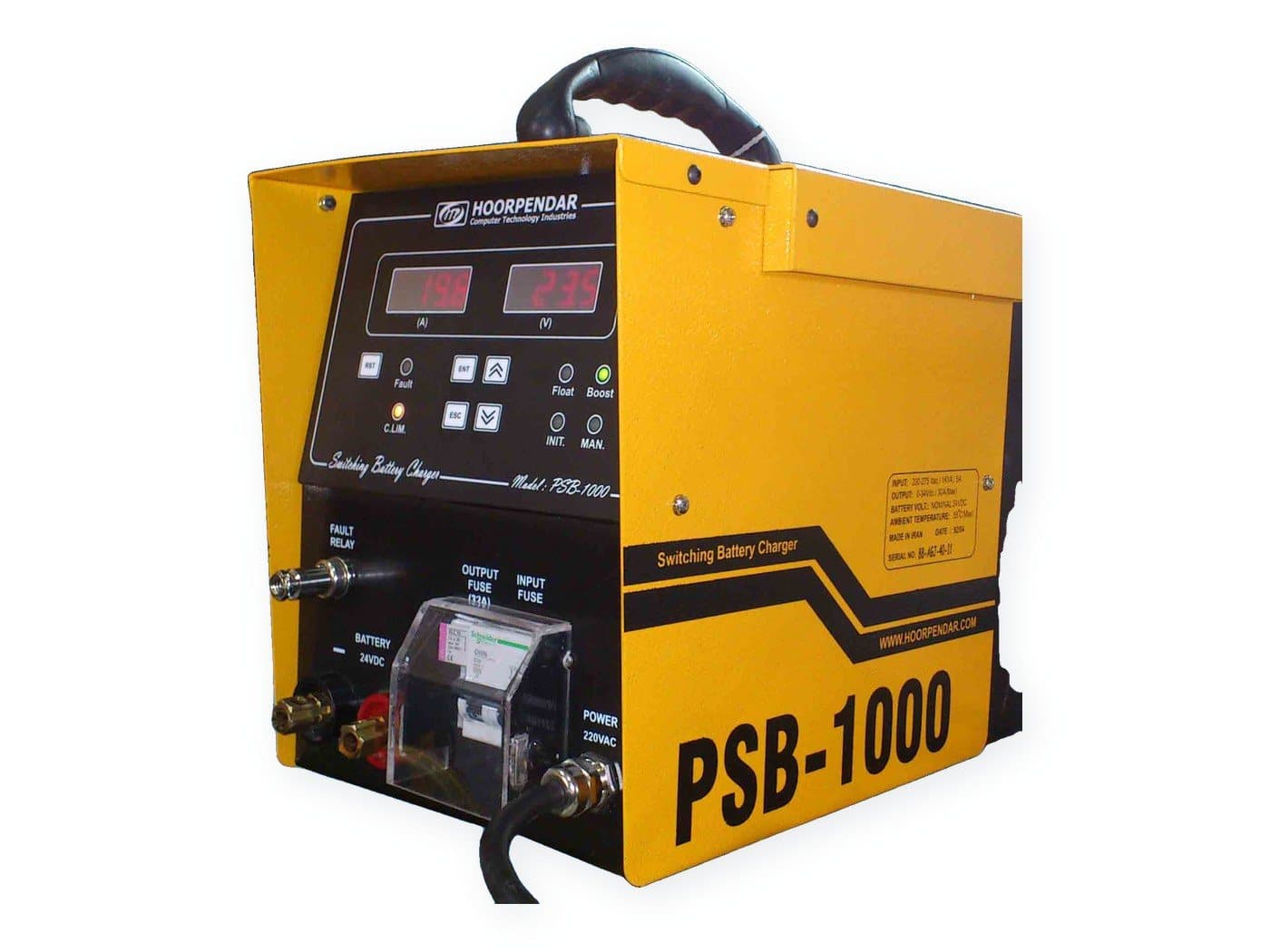

PSB-1000
Portable switching battery charger
Charges lead-acid and alkaline batteries in the 24 V range, designed to the Iranian petrochemical standard for battery chargers.
- Initial, boost, float and manual power-supply modes
- Set up from the front display; charge voltage and current stay under control throughout
- Fault log and a fault relay output
- IP54, up to 90 % non-condensing humidity

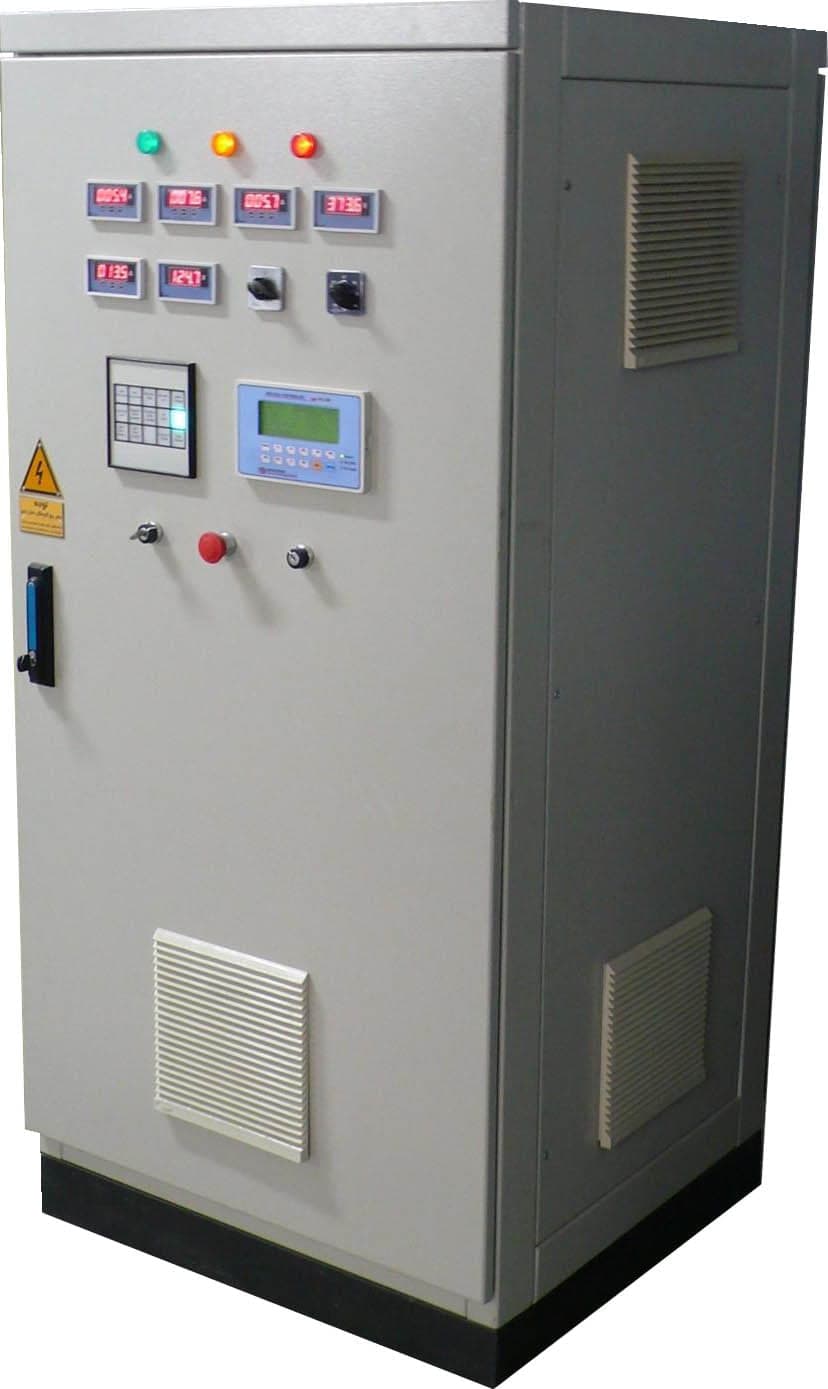

Single- and three-phase thyristor battery chargers
Low-power chargers are usually single-phase, and a single-phase unit also suits sites without three-phase power. The industrial three-phase chargers run on our smart digital controller, with fast, accurate voltage and current loops. Where size and weight matter, we build switching chargers too.
- Single-phase thyristor: 6 to 250 V DC and up to 5 kW, to the customer’s requirement
- Industrial three-phase units with a digital controller and current and voltage meters on the door
- Switching chargers, much smaller and lighter than thyristor units
- RTB-100
RTB-100
Battery charger for turbine starting systems
On some gas turbines the hydraulic pump motor draws about 80 A at start-up, and repeated starts drain the batteries. The RTB-100 has two independent control loops: it charges at up to 40 A while supplying up to 100 A of load without interrupting the charge.
- Independent charge and load control loops
- Modular 3 mm steel battery cabinet

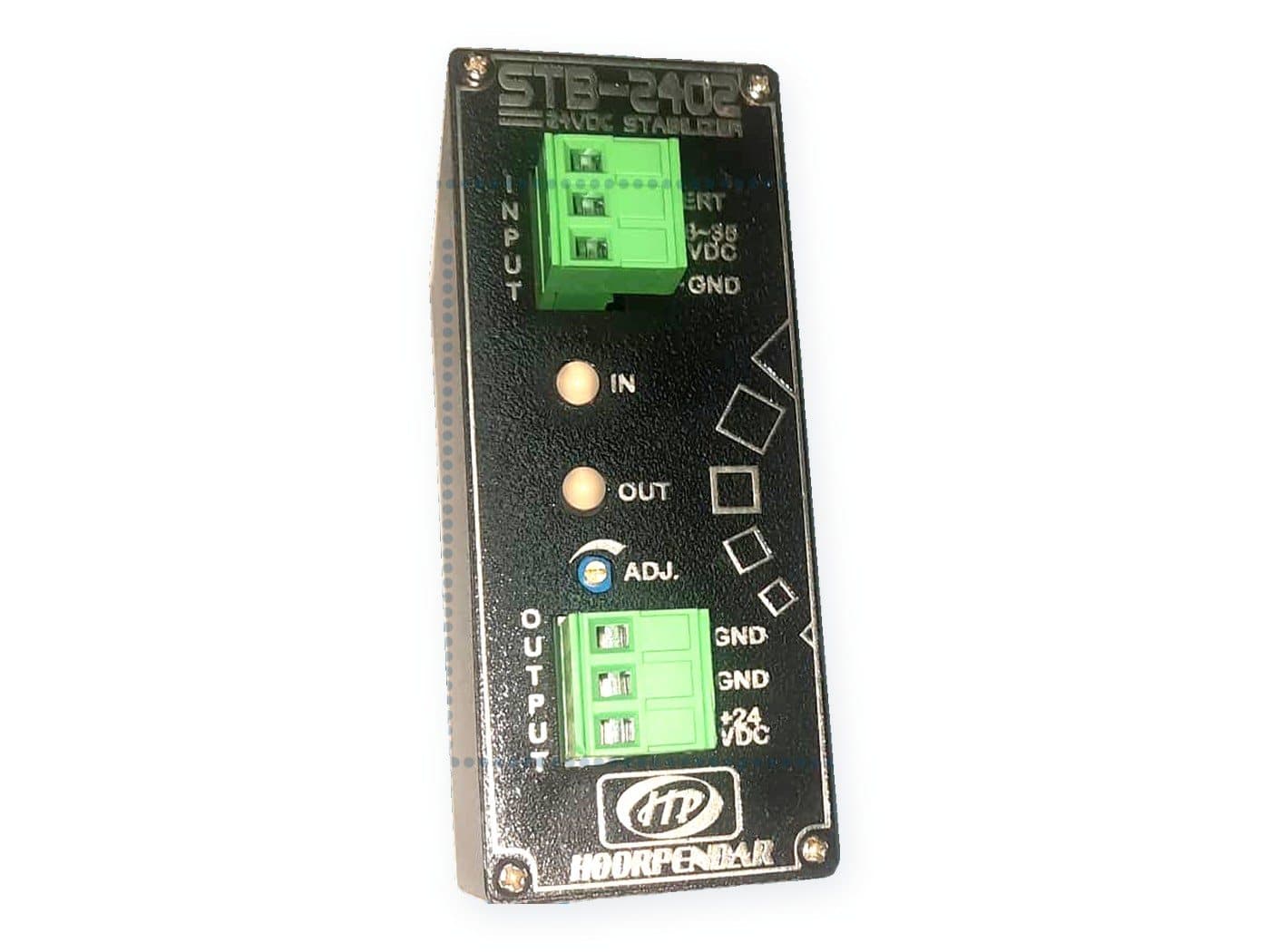

STB-2408S
24 V voltage stabilizer
Provides a stable supply for PLCs, HMIs and sensitive automation equipment, and mounts on a DIN rail.
- 12–36 V DC input, regulated +24 V DC output
- 2 to 10 A
- Over-voltage, over-current and short-circuit protection
- SDS-120
SDS-120
Battery selector and special power supplies
The SDS-120 manages two chargers and two battery banks and connects either bank to either charger. Hoorpendar also builds switching supplies for vibration-monitoring systems, 24 V DC power cards and amplifiers, 127 V DC selector panels and UPS cards.
- Two chargers, two battery banks
- Custom switching power supplies
- DC selector panels
Alarm Annunciators & Process Safety
4 productsThe programmable alarm annunciators in this group follow ISA S18.1. We also build process safety systems (HIPPS) for oil and gas and power plants.
PAL750 · PAL625
Modular programmable alarm annunciator
This annunciator is in service at many oil and gas plants and power stations. Every module has its own processor and does not depend on a master, so modules can be combined in any row and column layout.
- 2 to 512 alarms; all inputs isolated
- Three window sizes and five LED colours
- ISA S18.1 sequences (A, A4, M, R, F1A, F3A, F2M1) and first-out
- RS-485 Modbus; alarm repeat relays
SAL-82
Compact alarm panel
This compact window-type panel is made for local control panels and comes in a simple and a controller model. The simple model lights the alarm windows with bright LEDs. In the controller model, an internal processor reads the signals, announces and logs the alarms and runs ISA S18.1 sequences. Both are modular and built with any number of windows.
- Window labels change easily from the front; 60 × 30 mm windows
- Test, acknowledge, reset and horn-off buttons
- Selectable alarm input voltage: 12, 24, 48, 120 or 240 V; all inputs isolated
- Alarm colour (red, green or amber) and NO or NC inputs set by DIP switches at the back
Replacement alarm annunciator cards
We build input and flasher cards for older alarm annunciators, so an existing panel works again with no change to the cabinet or wiring. Each new card keeps the connections and size of the original and fits the same rack.
- Alarm input card with NO/NC signal selector
- Negative-logic flasher board
- 24 V DC supply; metal front plate with model and voltage label

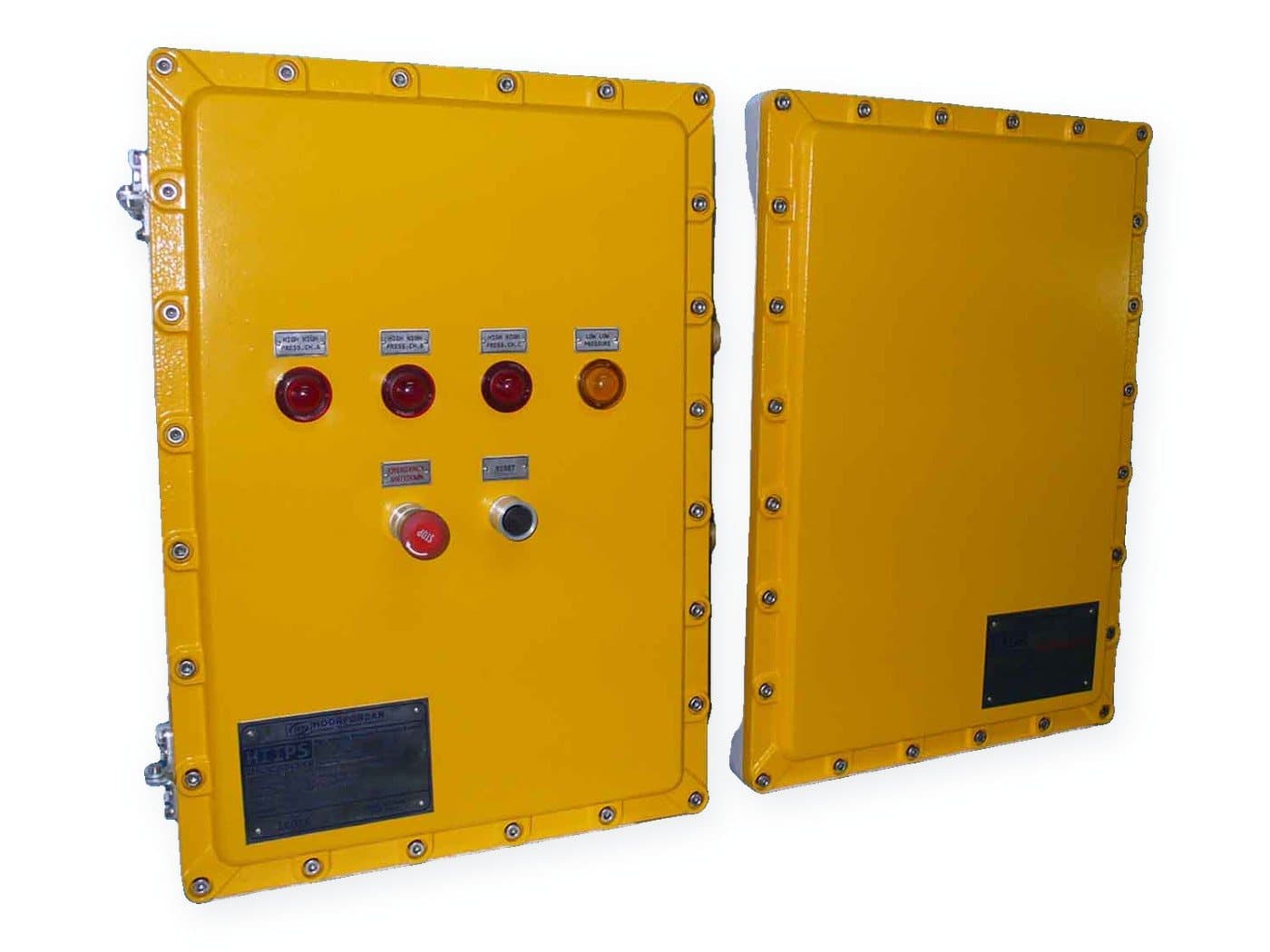

HIPPS Logic Solver
High-integrity pressure protection system (HIPPS)
A safety instrumented system for upstream oil and gas. It shuts off the flow before pressure exceeds the safe limit, so downstream piping can be designed lighter and cheaper, and less gas goes to the flare.
- SIL calculation and verification
- SCADA connection
- Runs up to 60 °C without ventilation; low power
- Expandable for BMS and line-break valve functions
Instrumentation & Process Monitoring
6 productsThis group covers signal converters, multichannel process and temperature monitors, recorders and data loggers.
PI-315 · PIT-315N
Pressure-to-current (P/I) converter
Converts pneumatic instrument signals to current so existing pneumatic instruments can connect to modern control systems, recorders and displays.
- Accuracy better than ±0.25 % FS
- Loop-powered, 12–32 V DC
- Only 19 mm wide (N model); DIN-rail mounting
- Withstands twice the rated pressure

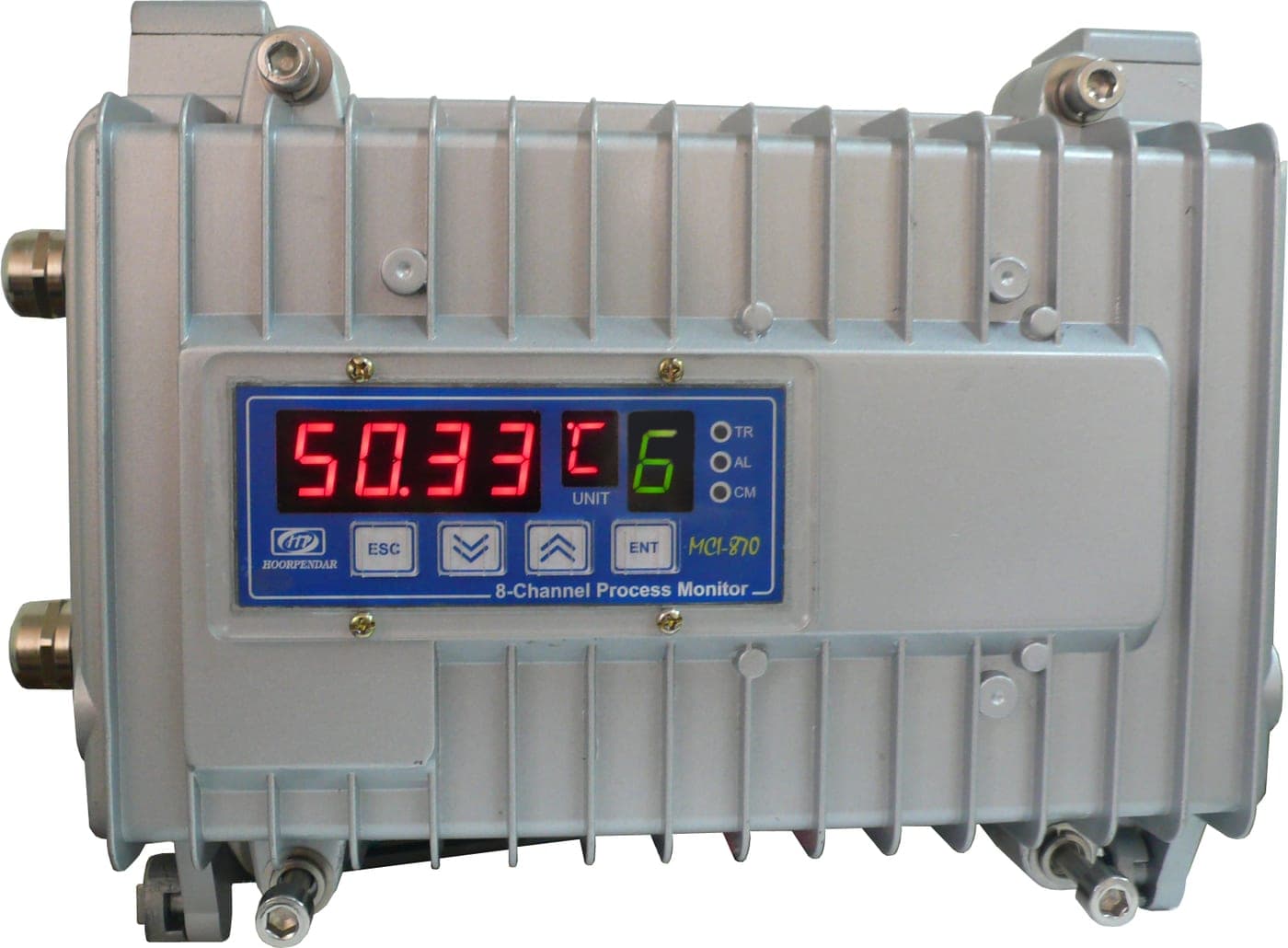

MCI-870
8-channel outdoor process monitor
It has eight isolated analog inputs in an IP54 metal enclosure. Each channel has its own processor and its own alarm and trip relays.
- Inputs: RTD, thermocouple, mV, 0–10 V, 1–5 V, 0/4–20 mA
- A processor per channel; two alarm and trip relays
- Modbus over RS-485/232
- Seven-segment display readable in daylight, with several display modes and a unit per channel

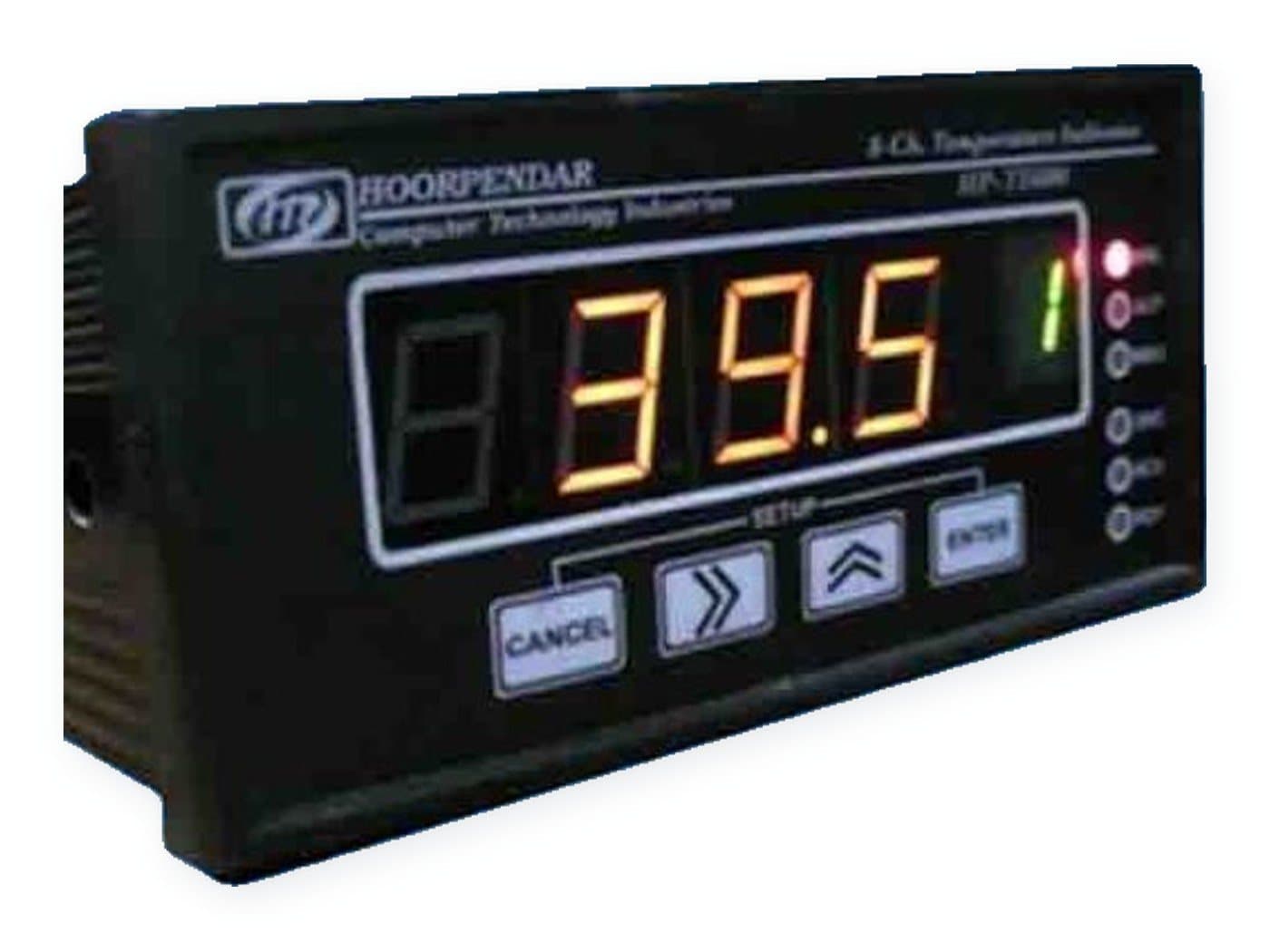

MPS · MCI-6447 · MCI-2420 · MCP-9000
Multichannel process and temperature monitors
Power plants and oil facilities often need to watch more than 60 temperature points. The MPS family takes up to 32 inputs, and 64-, 24-, 9- and 8-channel temperature monitors are also available.
- RTD, TC, V and mA inputs; four analog inputs per card
- MPS-D16 touch LCD or digital display; MNL, AUT and MAX modes
- Two alarm relays per card rated 3 A at 14 V DC or 2 A at 120 V AC, programmable for heating or cooling
- RS-485 link from the cards to the display, which can sit away from the panel

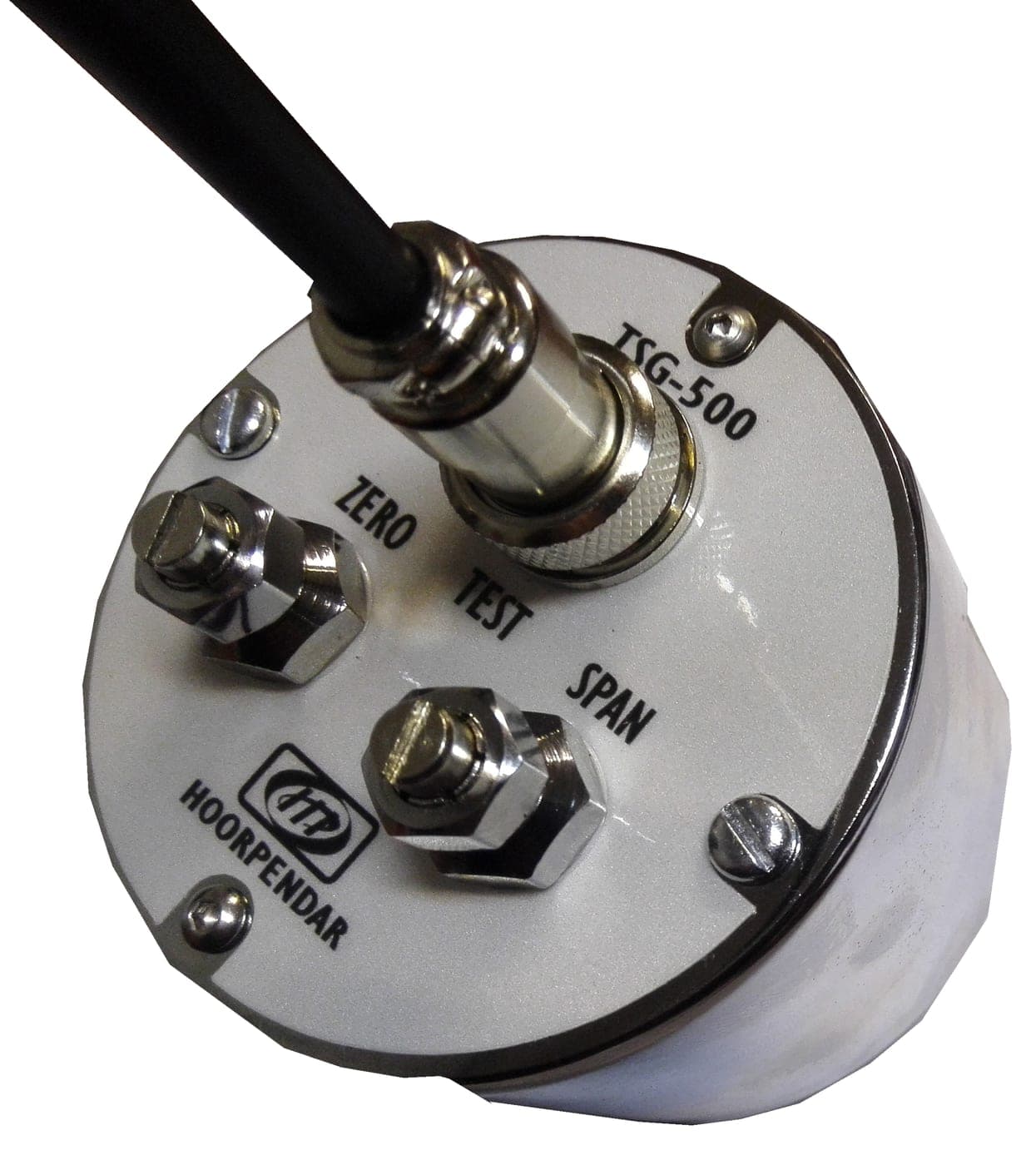

TSG-500
Strain gauge amplifier
Amplifies strain-gauge signals to measure pressure, differential pressure, weight and level. It has a 4–20 mA output with adjustable zero and span.
- 4–20 mA output
- Zero and span adjustment
- Rugged industrial housing
Paperless recorders and data loggers
We build twelve-channel paperless recorders, chart recorder drivers and power-plant electrical data loggers, and collect data from protection relays and power analyzers.
- 12-channel paperless recorder
- Data acquisition from relays and power analyzers

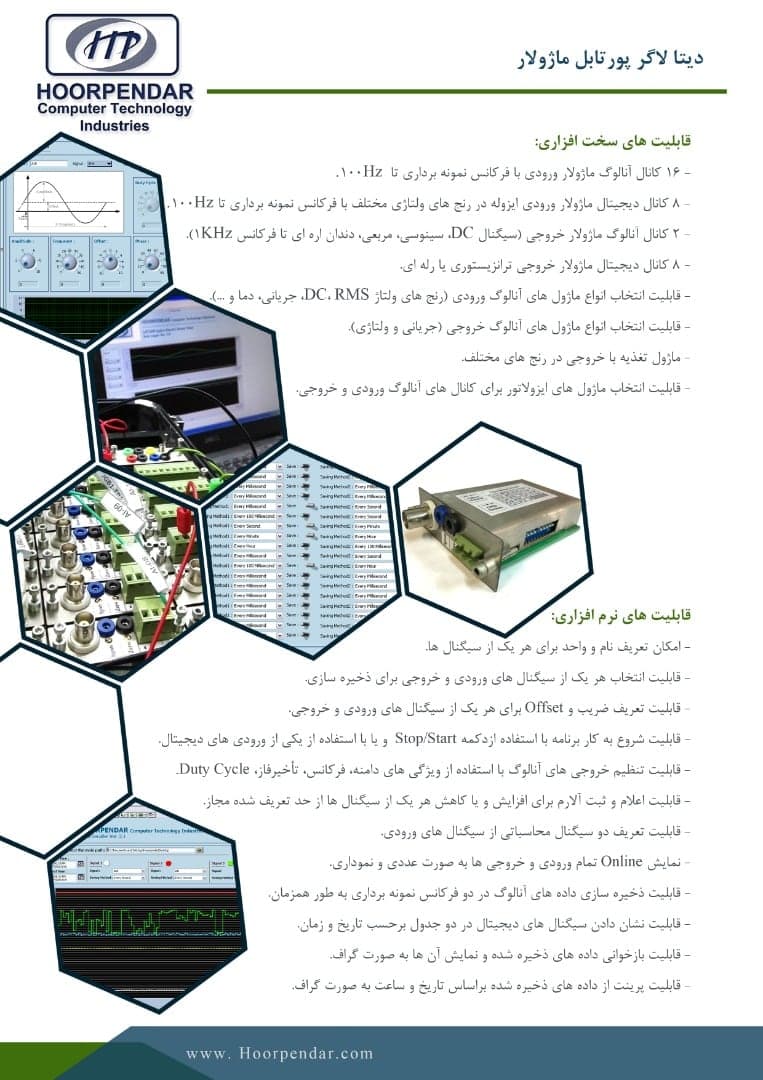

- Modular portable data logger: 16 analog inputs up to 100 Hz and 8 isolated digital inputs
- Two analog outputs (DC, sine, square and sawtooth up to 1 kHz) and 8 transistor or relay outputs
Vibration monitoring cards, readouts and cables
This equipment watches vibration and axial (thrust) position on rotating machines. We build measurement and control cards, analog and digital readouts and sensor extension cables for existing vibration-monitoring systems, matching the original connections and behaviour.
- Four-channel vibration and thrust readouts with channel select and reset

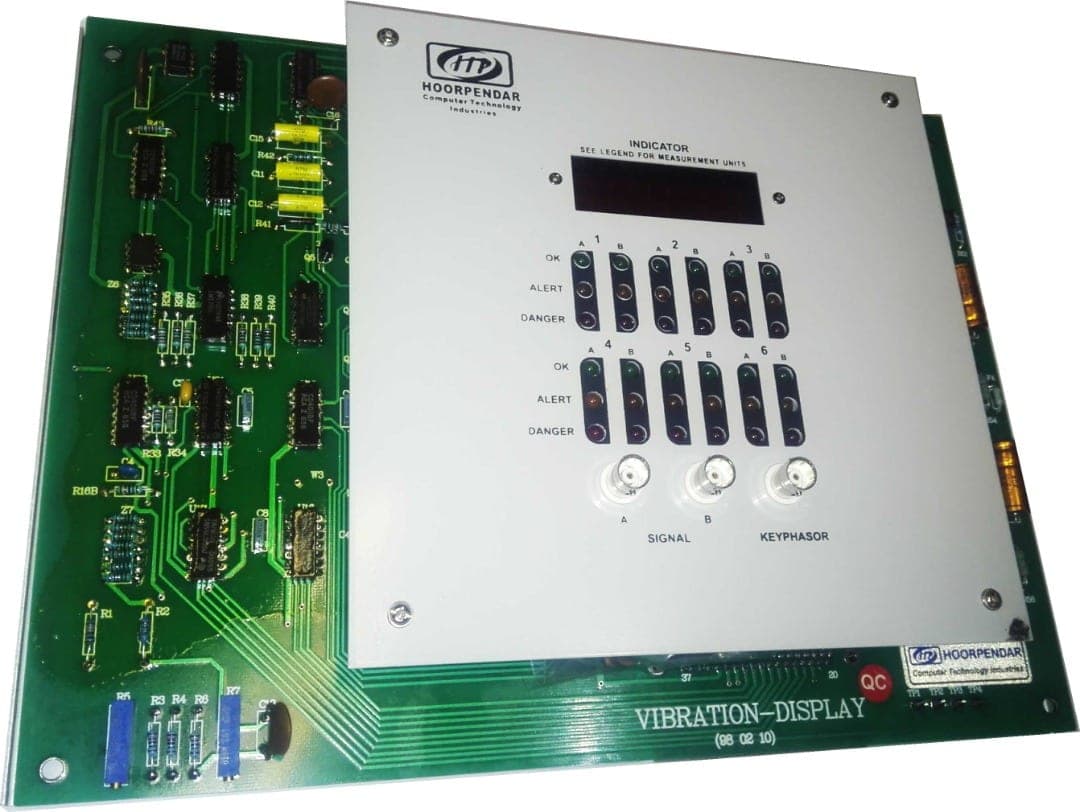

- Six-channel digital display with OK, alert and danger status per channel, plus signal and keyphasor outputs
- Controller card with shutdown, danger, alert and malfunction relays and remote meter outputs
- Sensor extension cables with gold-plated connectors
Dam, Power Plant & Infrastructure
6 productsFor dams, power plants and infrastructure we build level meters, dam safety instruments, frequency meters, master clocks and industrial resistors.

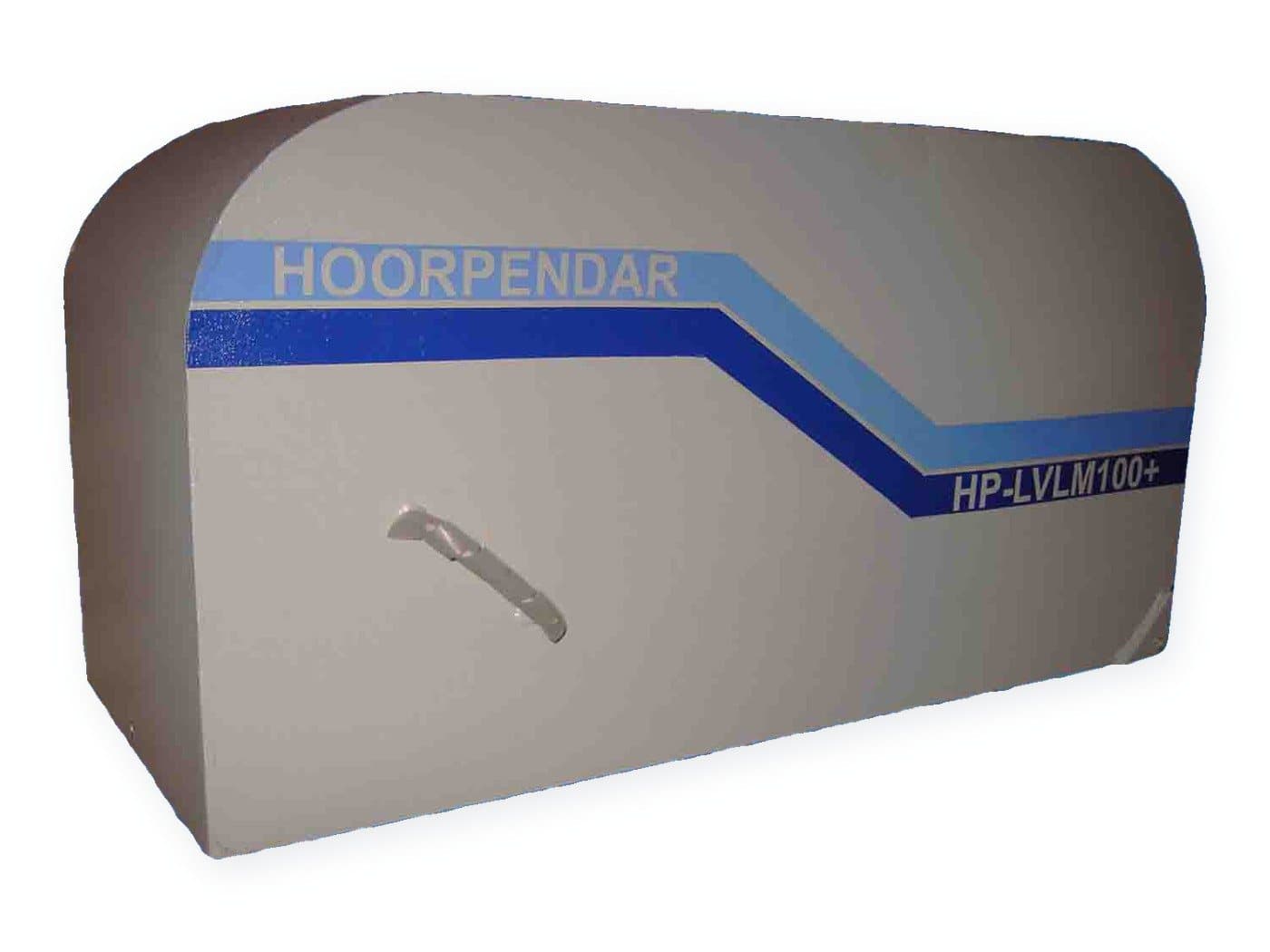

HP-LVLM100 · LVLM100+ · LVLM20F
Digital float level meter
Measures water level in dams, hydrometric stations, canals and rivers, and material level in fuel tanks and flour and cement silos.
- 0–100 m range, ±1 cm accuracy
- RS-485 Modbus with selectable baud rate and address; data sent up to 16 km
- Data recorder, display, interface converter and online logging software
- Waterproof, dustproof case; keypad set-up with password protection

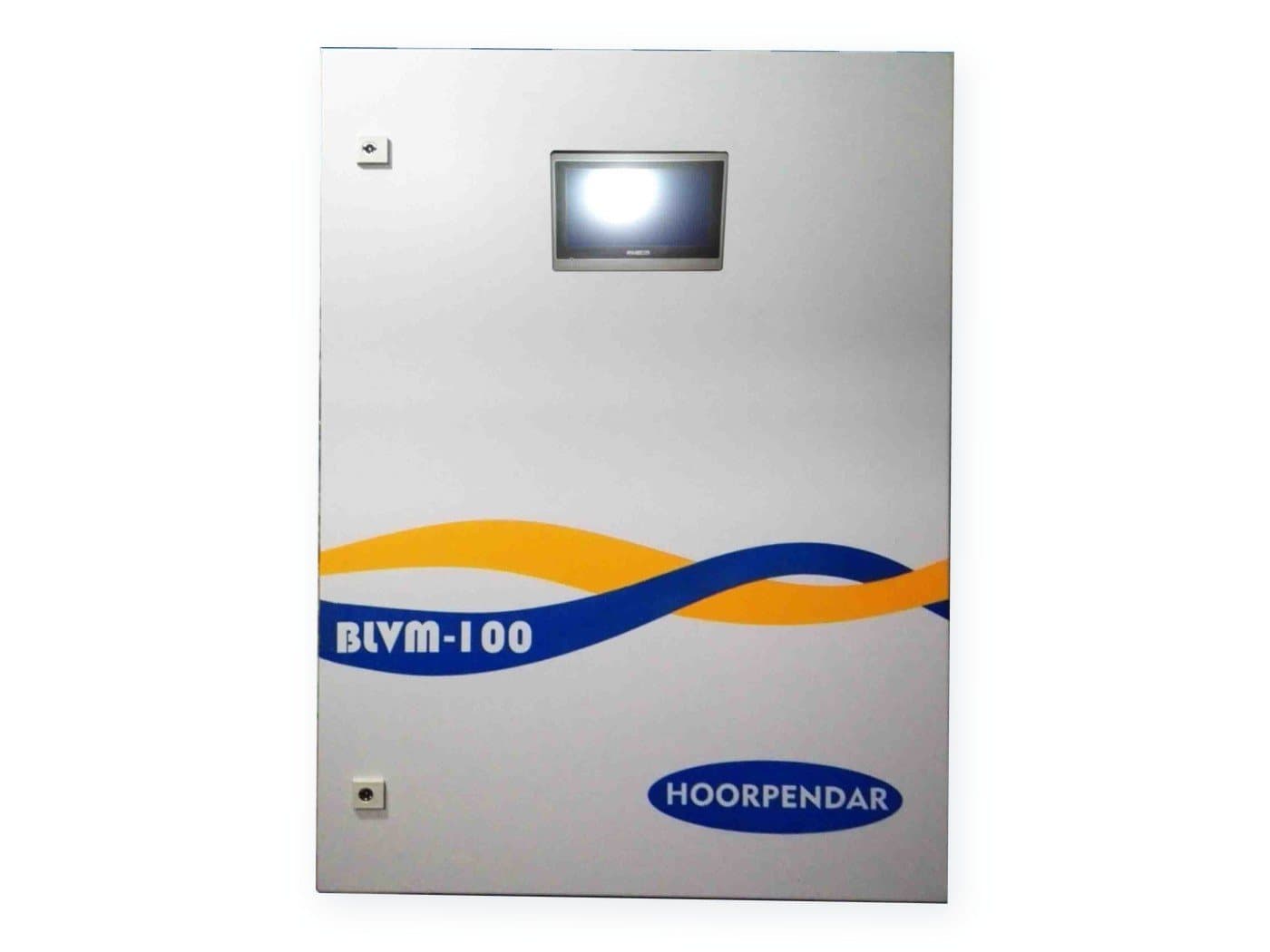

BLVM-100
Air-purge (bubbler) level meter
Purges compressed air to the lowest measuring point and reads its pressure, which is proportional to the water height. Suits earth and concrete dams without vertical access to the water, and can watch several observation wells at once.
- Up to 100 m with centimetre accuracy; for dams and reservoirs whose level moves more than 20 m
- No sensor contact with water; unaffected by silt and algae
- Needs no vertical access to the water and works through an inclined pipe
- Controller with a colour LCD, plus a six-digit display for the control room
HP-DS400 · HP-DS225 · HP-TF560

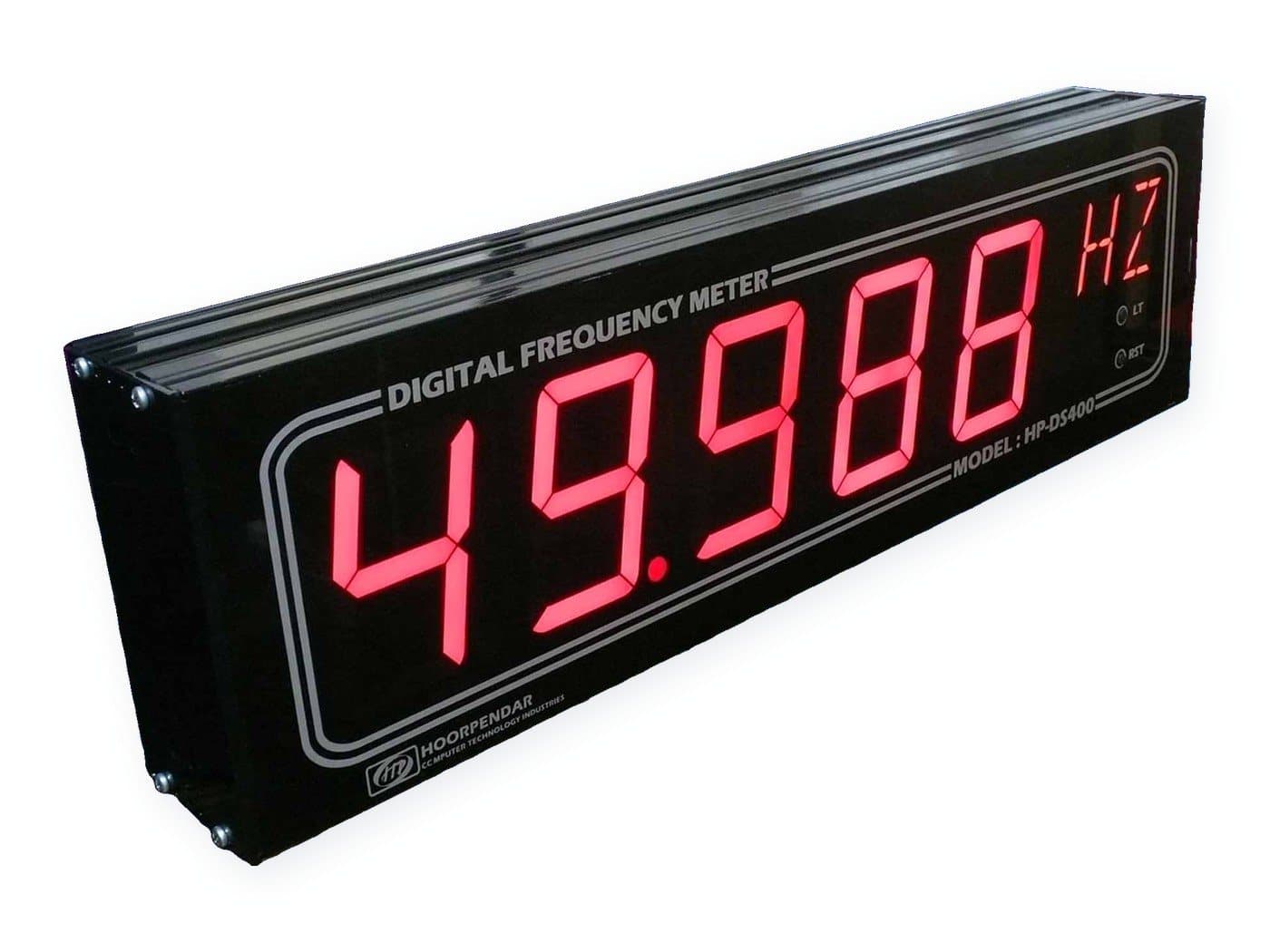

Digital frequency meter and frequency transducer
Measures and displays grid frequency precisely in power plants and substations. The large displays can be mounted on panels, walls or ceilings.
- HP-DS400 and HP-DS225 displays: microprocessor-based, Modbus or binary protocol, readable from far away
- Adjustable brightness, lamp test key, DIP-switch address (0–256) and baud rate
- HP-TF560 transducer: isolation up to 1500 V, 4–20 mA or 0–5 V DC output and a serial output for the display
- Modbus over RS-485/232; the transducer mounts on a DIN rail
MCK-307 · LDS-2250 · HP-DSC225

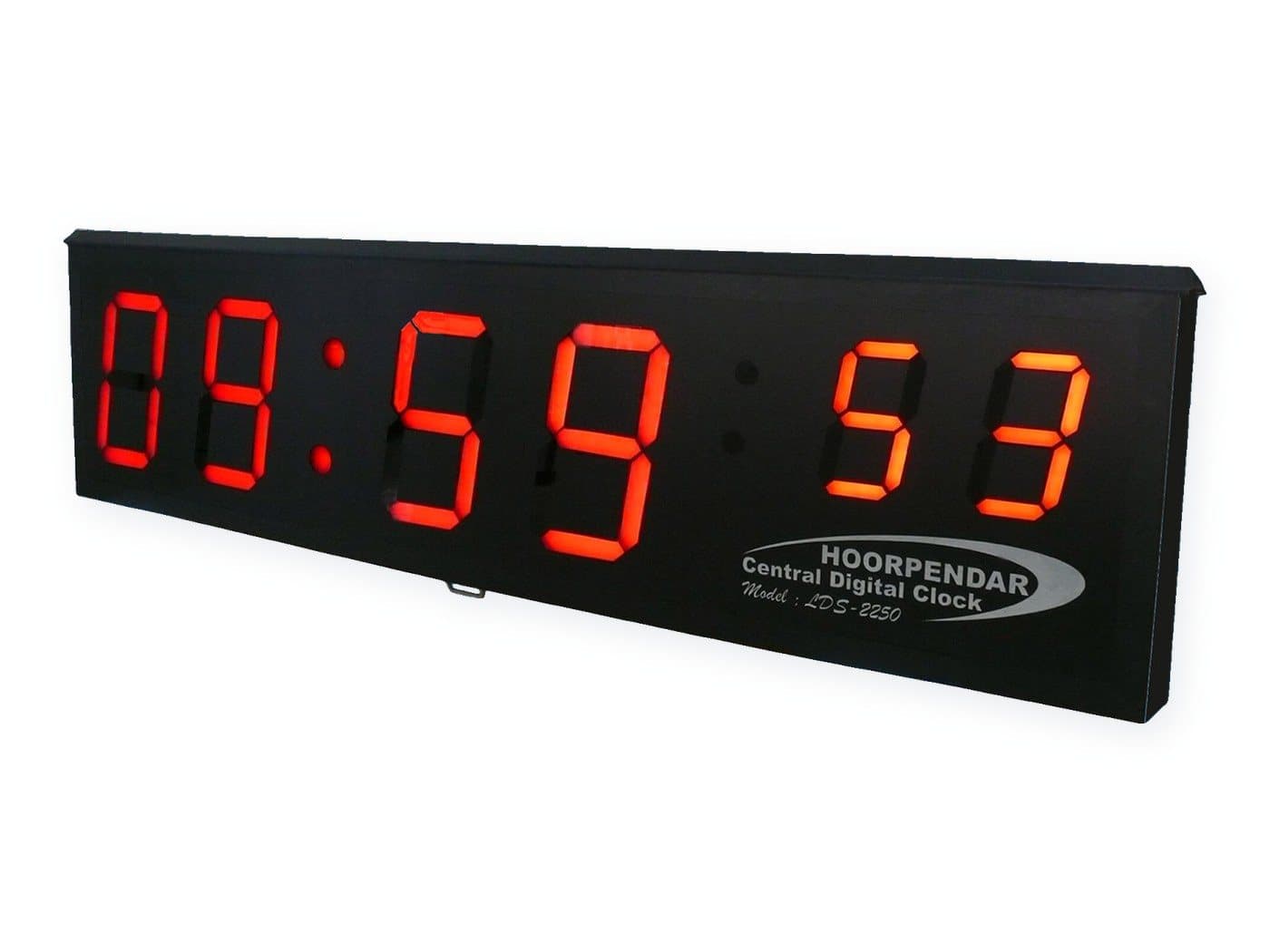

Digital master clock system
Keeps every part of a power plant, factory or office building on the same time. One master clock sends the time and date to any number of displays.
- Set from GPS or a PC
- RS-232, RS-485 and current loop
- 1.75″ to 22.5″ digits, readable from 5 to 100 m

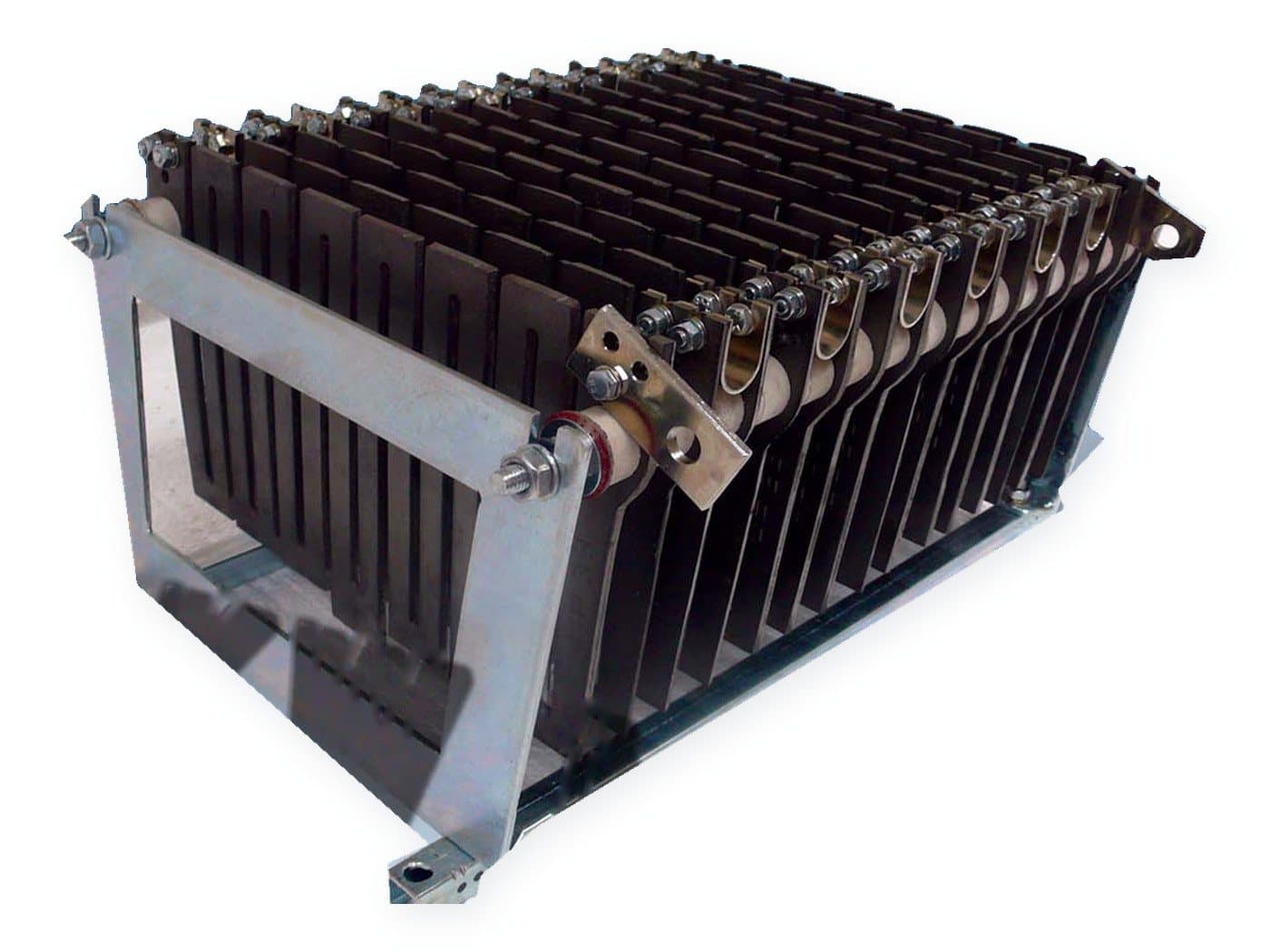

Industrial cast-iron resistors
We build starting, slip, braking, discharge, excitation and protection resistors, and short-circuit equipment, from 10 kW to 3 MW.
- Short-time, intermittent or continuous duty
- High overload capacity and low maintenance
- Double mica and ceramic insulation
- Bolted elements, combined to suit the required rating
PDML-4800
Dam safety monitoring instruments
How a dam body moves under load is one of the key measures of its stability. The PDML-4800 automatic laser pendulum reader measures the pendulum wire position on the X and Y axes to 0.01 mm, stores it and sends it to a PC for the dam stability software. The group also includes opening measurement for spillway and intake gates (submerged gates too) and automatic logging from about 1,000 dam-body sensors.
- Contactless laser measurement to 0.01 mm on the X and Y axes
- Works with direct and inverted pendulums; mounts on the existing base in the dam body
- MMC memory, internal clock and data kept through power cuts
- LCD, dust- and water-proof keypad, and a password for settings
Legacy system renewal
We rebuild electronic equipment and cards that no longer have manufacturer support, or redesign them with current technology. The function and connections stay the same.
How we renew a legacy system
- 1Examine the original unit and analyse how it works
- 2Document it and draw up the schematic
- 3Design the circuit with current, available parts
- 4Build and fully test it against the original behaviour
- 5Install, commission and support it long term
Examples of renewed equipment
- Synchronous motor excitation control cards
- Generator excitation voltage control cards
- Vibration monitoring power supplies and cards
- Alarm system and fault annunciator cards
- Temperature monitoring units and process monitoring cards
- Zener barriers and safety barriers
- LV switchgear control and motor protection cards
- UPS cards, recorder power supplies and amplifiers
Clients
Industries we work with
The number of contracts and projects, by type of client.
- 54Oil & gas operator
- 41Dam & hydroelectric plant
- 29Pumping, compression & gas injection station
- 9Thermal power plant
- 8Industrial contractor
- 5Petrochemical complex
- 3Water utility
- 2Municipal project
- 2Rail vehicle manufacturer
- 2Gas refinery
- 2National meteorological network
- 1Research program
- 1Offshore oil facility
- 1Steel plant
- 1Office building
- 1Mining
Track record
Projects and contracts
This list shows 138 recorded contracts from 2001 to 2022 and several other notable projects. We can provide the contract and completion records for any of them on request.
| # | Project | Facility | Year |
|---|---|---|---|
| 1 | Static excitation unit for a hydroelectric generator | Dam & hydroelectric plant | 2001 |
| 2 | Fully redundant intelligent control of water flow from a dam to a metropolitan area | Dam & hydroelectric plant | 2001 |
| 3 | Monitoring system for five units of a hydroelectric plant | Dam & hydroelectric plant | 2003 |
| 4 | Opening measurement for 11 dam gates over distances up to 3 km, with instrument testing and calibration | Dam & hydroelectric plant | 2004 |
| 5 | Opening indication for six submerged intake gates | Dam & hydroelectric plant | 2004 |
| 6 | Online recording of electrical parameters and reservoir level measurement at a hydroelectric plant | Dam & hydroelectric plant | 2004 |
| 7 | Collection and transmission of about 600 status and alarm signals for a hydroelectric plant | Dam & hydroelectric plant | 2004 |
| 8 | Fire alarm system for a hydroelectric plant | Dam & hydroelectric plant | 2005 |
| 9 | Laser crydoscope for precise dam-body deflection monitoring | Dam & hydroelectric plant | 2005 |
| 10 | Two-phase data monitoring system for a dam and hydroelectric plant | Dam & hydroelectric plant | 2006 |
| 11 | Flushing control and timing system for power plant towers | Thermal power plant | 2006 |
| 12 | Fuel tank level measurement and frequency meter for a thermal power plant | Thermal power plant | 2006 |
| 13 | Remote automatic control of dam sluice gates and outflow regulation | Dam & hydroelectric plant | 2007 |
| 14 | Excitation control and starter for 3.5 MW synchronous motors at pumping stations | Pumping, compression & gas injection station | 2007 |
| 15 | Alarm annunciators for 25 gas pumping stations and associated panels | Pumping, compression & gas injection station | 2007 |
| 16 | Automatic voltage regulator (AVR) for two hydroelectric units | Dam & hydroelectric plant | 2008 |
| 17 | Installation and commissioning of 20 synchronous-motor protection relays | Pumping, compression & gas injection station | 2008 |
| 18 | Automatic voltage regulator (AVR) for 3.5 MW synchronous motors | Pumping, compression & gas injection station | 2009 |
| 19 | PAL625 alarm annunciator system(×2) | Oil & gas operator | 2009 |
| 20 | Digital master clock system | Dam & hydroelectric plant | 2009 |
| 21 | Remote monitoring of flares at gas and oil injection stations | Pumping, compression & gas injection station | 2009 |
| 22 | Temperature measurement card for process monitoring | Pumping, compression & gas injection station | 2009 |
| 23 | Data acquisition and monitoring for protection relays and power analyzers | Pumping, compression & gas injection station | 2009 |
| 24 | Two models of vibration-monitoring control cards | Pumping, compression & gas injection station | 2009 |
| 25 | Twenty switching power supplies for a vibration-monitoring system | Pumping, compression & gas injection station | 2009 |
| 26 | Load resistor bank | Dam & hydroelectric plant | 2009 |
| 27 | Rack power supply for a vibration-monitoring system | Pumping, compression & gas injection station | 2009 |
| 28 | Alarm system electronic card | Pumping, compression & gas injection station | 2010 |
| 29 | Battery charger controller | Pumping, compression & gas injection station | 2010 |
| 30 | Process monitor with mixed inputs, expandable to 64 channels | Pumping, compression & gas injection station | 2010 |
| 31 | Design, build and replacement of the AVR for an 8 MW generator | Petrochemical complex | 2011 |
| 32 | Five 8-channel temperature monitors, IP54 | Pumping, compression & gas injection station | 2011 |
| 33 | HIPPS logic solver panel | Industrial contractor | 2012 |
| 34 | Pressure-to-current (P/I) converters, several contracts | Oil & gas operator | 2012 |
| 35 | Research program: digital governor control for a hydro turbine | Research program | 2012 |
| 36 | Generator governor system | Oil & gas operator | 2012 |
| 37 | Automatic generator brake control for a hydroelectric plant | Dam & hydroelectric plant | 2012 |
| 38 | Automatic alarm detection and annunciation for a hydroelectric plant | Dam & hydroelectric plant | 2012 |
| 39 | 800 alarm annunciator signals for oil production plants | Oil & gas operator | 2013 |
| 40 | Low-voltage electrical installations for an urban lake | Municipal project | 2013 |
| 41 | Battery charger for a dam and hydroelectric plant | Dam & hydroelectric plant | 2013 |
| 42 | Laser crydoscope for dam monitoring | Dam & hydroelectric plant | 2013 |
| 43 | Microprocessor-based spillway gate opening system: supply, installation and commissioning | Dam & hydroelectric plant | 2013 |
| 44 | Tachogenerator and fly-governor drive for a hydroelectric plant | Dam & hydroelectric plant | 2013 |
| 45 | Pressure-to-current (P/I) converter(×3) | Oil & gas operator | 2014–2016 |
| 46 | 24 V DC power card | Oil & gas operator | 2014 |
| 47 | Signal converter | Oil & gas operator | 2014 |
| 48 | Safety barriers | Oil & gas operator | 2014 |
| 49 | Alarm annunciator system(×3) | Pumping, compression & gas injection station | 2014–2015 |
| 50 | Siren electric motor | Oil & gas operator | 2014 |
| 51 | 12-channel paperless recorder | Petrochemical complex | 2014 |
| 52 | Gas turbine flame detector(×2) | Oil & gas operator | 2014 |
| 53 | Special cables for process equipment | Oil & gas operator | 2014 |
| 54 | Battery charger control unit | Oil & gas operator | 2014 |
| 55 | LV switchgear control card | Oil & gas operator | 2014 |
| 56 | Vibration-monitoring card | Oil & gas operator | 2014 |
| 57 | Programmable microcomputer systems for measuring and displaying temperature points | Dam & hydroelectric plant | 2014 |
| 58 | HIPPS logic solver system | Industrial contractor | 2014 |
| 59 | Design and assembly of three industrial sirens | Industrial contractor | 2014 |
| 60 | Feasibility study for upgrading the rotating excitation system of a hydroelectric plant | Dam & hydroelectric plant | 2014 |
| 61 | Testing and calibration of generator excitation system cards | Dam & hydroelectric plant | 2014 |
| 62 | Alarm panel components | Pumping, compression & gas injection station | 2015 |
| 63 | FR-430E flame relay | Oil & gas operator | 2015 |
| 64 | Fault annunciator electronic card | Oil & gas operator | 2015 |
| 65 | FDU-300 gas turbine flame detector(×4) | Oil & gas operator | 2015–2016 |
| 66 | Electrical and irrigation installations for an urban park | Municipal project | 2015 |
| 67 | Power supply for a new gas turbine warning panel | Oil & gas operator | 2015 |
| 68 | 24 V DC amplifier | Oil & gas operator | 2015 |
| 69 | Gas turbine warning panel | Oil & gas operator | 2015 |
| 70 | Pressure pump | Oil & gas operator | 2015 |
| 71 | UV tubes and flame relays | Oil & gas operator | 2015 |
| 72 | 127 V DC selector panel | Dam & hydroelectric plant | 2015 |
| 73 | Three-way valve and control circuit for spherical-valve sealing at a hydroelectric plant | Dam & hydroelectric plant | 2015 |
| 74 | Dam level meter: supply, installation and commissioning | Dam & hydroelectric plant | 2015 |
| 75 | Four electronic cards for a 10 kVA UPS at a gas injection station | Pumping, compression & gas injection station | 2016 |
| 76 | 32-window annunciator panel for a desalting-unit pump | Oil & gas operator | 2016 |
| 77 | 24 V flame detector | Oil & gas operator | 2016 |
| 78 | Alarm electronic cards | Pumping, compression & gas injection station | 2016 |
| 79 | Four alarm panels | Pumping, compression & gas injection station | 2016 |
| 80 | Four flame relays | Oil & gas operator | 2016 |
| 81 | Four flame relays with flame-rod sensors | Oil & gas operator | 2017 |
| 82 | 120 PI-315 pressure-to-current converters | Oil & gas operator | 2017 |
| 83 | 40 excitation control units for 3.5 MW synchronous motors | Pumping, compression & gas injection station | 2017 |
| 84 | Flame relay with electronic flame scanner | Oil & gas operator | 2017 |
| 85 | Flame relay and flame rod | Oil & gas operator | 2017 |
| 86 | Five long-electrode spark plugs | Oil & gas operator | 2017 |
| 87 | Two SBC-620 smart battery charger controllers: supply, installation and commissioning | Dam & hydroelectric plant | 2017 |
| 88 | Five flame detectors | Oil & gas operator | 2017 |
| 89 | Ignition coil for a gas turbine | Thermal power plant | 2017 |
| 90 | High-energy ignition unit | Thermal power plant | 2017 |
| 91 | Battery charger controller | Thermal power plant | 2017 |
| 92 | Gas turbine ignition cables | Oil & gas operator | 2017 |
| 93 | Gas turbine ignition system for a power plant | Thermal power plant | 2018 |
| 94 | Flame rod sensor | Oil & gas operator | 2018 |
| 95 | Portable igniter for desalting-unit preheaters | Oil & gas operator | 2018 |
| 96 | Fourteen UV flame detectors for gas turbines | Oil & gas operator | 2018 |
| 97 | Paperless recorder and pneumatic-to-current converter | Oil & gas operator | 2018 |
| 98 | Industrial gas turbine control system | Oil & gas operator | 2018 |
| 99 | Control and vibration monitoring for an industrial gas turbine | Oil & gas operator | 2018 |
| 100 | 24 V DC / 100 A battery charger for a gas turbine | Oil & gas operator | 2018 |
| 101 | Gas turbine ignition leads and plugs | Oil & gas operator | 2019 |
| 102 | Twenty pneumatic-to-current (P/I) converters | Oil & gas operator | 2019 |
| 103 | Fifteen alarm windows | Industrial contractor | 2019 |
| 104 | Smart battery charger system | Thermal power plant | 2019 |
| 105 | Pressure-to-current (P/I) converter | Pumping, compression & gas injection station | 2020 |
| 106 | Alarm system electronic card | Industrial contractor | 2020 |
| 107 | Complete flare ignition system (pulse ignition probe) | Industrial contractor | 2020 |
| 108 | Speed and temperature control units for industrial gas turbines, three contracts | Oil & gas operator | 2020 |
| 109 | 24 V / 20 A switching battery charger | Pumping, compression & gas injection station | 2021 |
| 110 | Ignition exciter for an industrial gas turbine | Pumping, compression & gas injection station | 2021 |
| 111 | Contactless inlet guide vane position sensor for a gas turbine | Offshore oil facility | 2021 |
| 112 | Upgrade of battery charger control systems at a dam and hydroelectric plant | Dam & hydroelectric plant | 2021 |
| 113 | Battery charger control system upgrade | Petrochemical complex | 2021 |
| 114 | Generator excitation system upgrade | Petrochemical complex | 2021 |
| 115 | Chlorination control system upgrade | Thermal power plant | 2021 |
| 116 | Flame detection and ignition equipment for gas turbines | Thermal power plant | 2021 |
| 117 | Control system upgrade for water-transfer gates from a dam to a metropolitan area | Dam & hydroelectric plant | 2021 |
| 118 | 32-channel generator temperature measurement system | Dam & hydroelectric plant | 2021 |
| 119 | Flame detection system equipment, two contracts | Oil & gas operator | 2021 |
| 120 | Gas turbine alarm annunciator system | Oil & gas operator | 2021 |
| 121 | Turbine speed indicator | Oil & gas operator | 2021 |
| 122 | Completion of the battery charger control system upgrade | Petrochemical complex | 2022 |
| 123 | Two models of special switching converters and drivers | Rail vehicle manufacturer | 2022 |
| 124 | Locomotive traction-generator excitation system | Rail vehicle manufacturer | 2022 |
| 125 | Chart recorder driver | Oil & gas operator | 2022 |
| 126 | Supply of Hoorpendar-made instrumentation | Oil & gas operator | 2022 |
| 127 | Pressure-to-current (P/I) converter | Gas refinery | 2022 |
| 128 | Battery charging card | Pumping, compression & gas injection station | 2022 |
| 129 | Instrumentation parts for an industrial gas turbine | Pumping, compression & gas injection station | 2022 |
| 130 | Digital dam level meter | Dam & hydroelectric plant | Undated |
| 131 | Digital dam level meter | Dam & hydroelectric plant | Undated |
| 132 | Digital dam level meter | Dam & hydroelectric plant | Undated |
| 133 | Digital dam level meter | Dam & hydroelectric plant | Undated |
| 134 | Digital dam level meter | Dam & hydroelectric plant | Undated |
| 135 | Automatic data acquisition and monitoring for three dams and hydroelectric plants (WinCC, DCS over Modbus) | Dam & hydroelectric plant | Undated |
| 136 | Meteorological data collection and switching network linking more than 256 stations at once | National meteorological network | Undated |
| 137 | Monitoring of about 30 high-power synchronous motors and feeders at four remote pumping sites | Pumping, compression & gas injection station | Undated |
| 138 | Slab casting line monitoring for a steel plant, with a Hoorpendar-built PLC and custom software | Steel plant | Undated |
| 139 | Redundant monitoring software for a gas refinery upgrade | Gas refinery | Undated |
| 140 | Monitoring of a water treatment plant and municipal pumping stations | Water utility | Undated |
| 141 | Remote automatic control of water flow from a dam over about 3 km, with telemechanical PLCs | Dam & hydroelectric plant | Undated |
| 142 | Automatic voltage control for 1200 A static generator excitation | Dam & hydroelectric plant | Undated |
| 143 | Drives for 25 kW electric motors of tunnelling locomotives, with speed control and fast current protection | Industrial contractor | Undated |
| 144 | Electrode current control for a 5000 A electric arc furnace | Industrial contractor | Undated |
| 145 | Real-time measurement and recording of electrical parameters for eight hydro units that regulate grid frequency | Dam & hydroelectric plant | Undated |
| 146 | Automatic data logging from about 1000 dam-body sensors | Dam & hydroelectric plant | Undated |
| 147 | Central LED lighting control for an office building, including auditorium and lobby | Office building | Undated |
| 148 | 64-channel digital test and monitoring system for meteorological send/receive lines | National meteorological network | Undated |
| 149 | Control of a 25-tonne mining crane with online load weighing and speed control | Mining | Undated |
| 150 | Continuous flow and level measurement for a feeder canal and dam reservoir, with data transmission to head office | Water utility | Undated |
| 151 | Fiber-optic network linking regional water facilities, a hydroelectric plant and dam management | Water utility | Undated |
| 152 | CO2 fire detection and suppression for a dam and hydroelectric plant, with three control centers | Dam & hydroelectric plant | Undated |
| 153 | Design, installation and testing of transformer, substation, motor and generator protection relays | Pumping, compression & gas injection station | Undated |
Standards and technologies
What our products and projects are built on
- IEEE 421.1–421.5
- ISA S18.1
- SIL / SIS
- Modbus RTU
- Modbus TCP
- RS-485 / RS-232
- 4–20 mA
- PLC
- SCADA / DCS
- Microprocessor · CPLD · FPGA
- IGBT / SCR
- IP54 / IP65
- Ex d
- Fibre optic
Battery chargers are designed to the Iranian petrochemical industry standard.
Contact
Get in touch for advice, orders or a visit
If you need new or replacement equipment, we will design and build it to your specification. You can also hand us a complete project.
- Head office
- No. 360, Dr. Shariati St., Tehran, Iran
- Fax
- +98 21 7760 3179
- Email · Website
- info@hoorpendar.comwww.hoorpendar.com
© Hoorpendar Computer Technology Industries · Since 1999
