Model: FMS-280
Contactless flare and pilot monitor
Measures flare flame status and size from a distance, reports it to the control room and raises audible and visual alarms on flame-out. Replaces thermocouples that wear out quickly. Installed about 400 m from the flare at a compression station.
Features
- Two flame-out relays (instant and delayed)
- 4–20 mA analog output showing flame size
- Serial port and software that logs flame-size changes
- Alarms tie in with the plant’s existing instrumentation
- Adjustable response time; preventive maintenance is possible while the flare burns
Applications
- Flares and pilot burners
- Pumping and compression stations
- Refineries and petrochemical plants
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

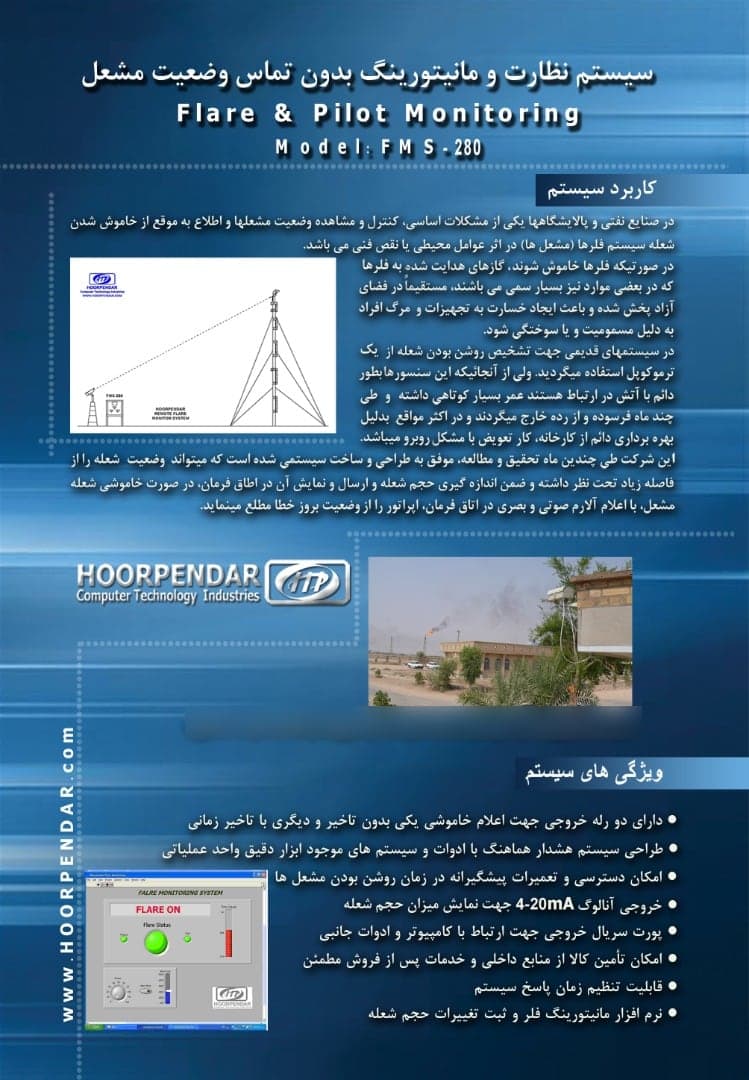

FMS-280 catalogue sheet
Technical data
| Installation distance | ≈ 400 m (reference site) |
|---|---|
| Outputs | 2 relays · 4–20 mA · serial |
Related projects
- Remote monitoring of flares at gas and oil injection stationsAhvaz · 2009
