Contactless position transducer
Measures fuel valve and inlet guide vane position with no mechanical wear. It comes in TCV and NGV types with an intrinsically safe (EEx ib) housing. One version sits inside the guide-vane hydraulic actuator: it works in 60 bar hydraulic oil at high temperature, is fast and accurate enough for position control, and brings its signal out through the actuator wall.
Features
- ±45° travel
- 4–20 mA output with zero and span adjustment
- +24 V DC supply; explosion-proof anodized aluminium body
Applications
- Industrial gas turbines
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

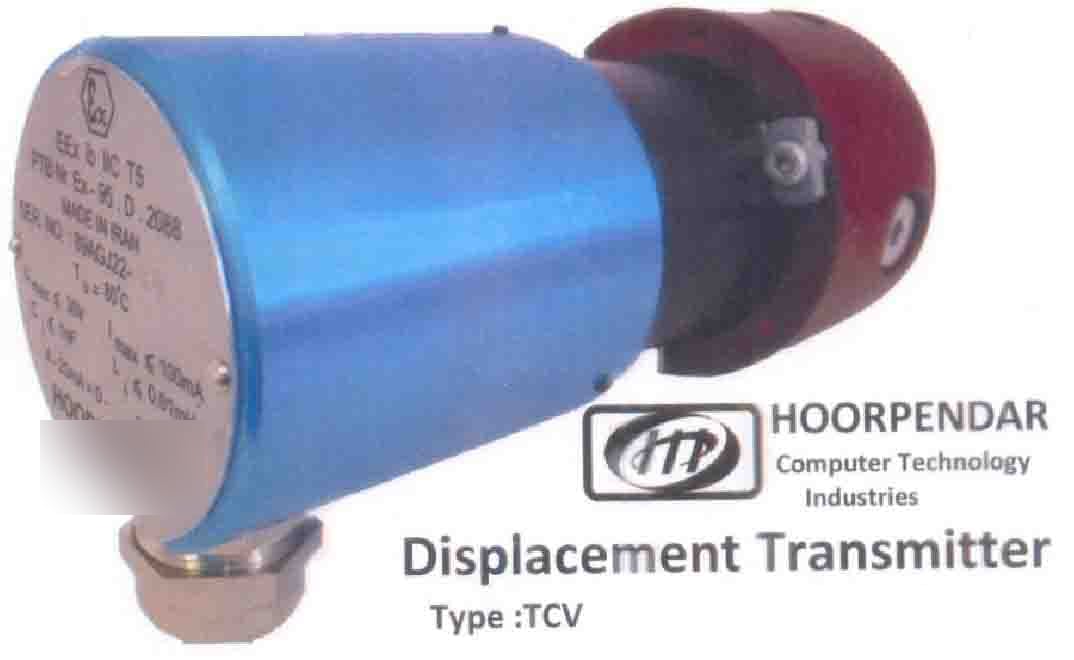

TCV displacement transmitter

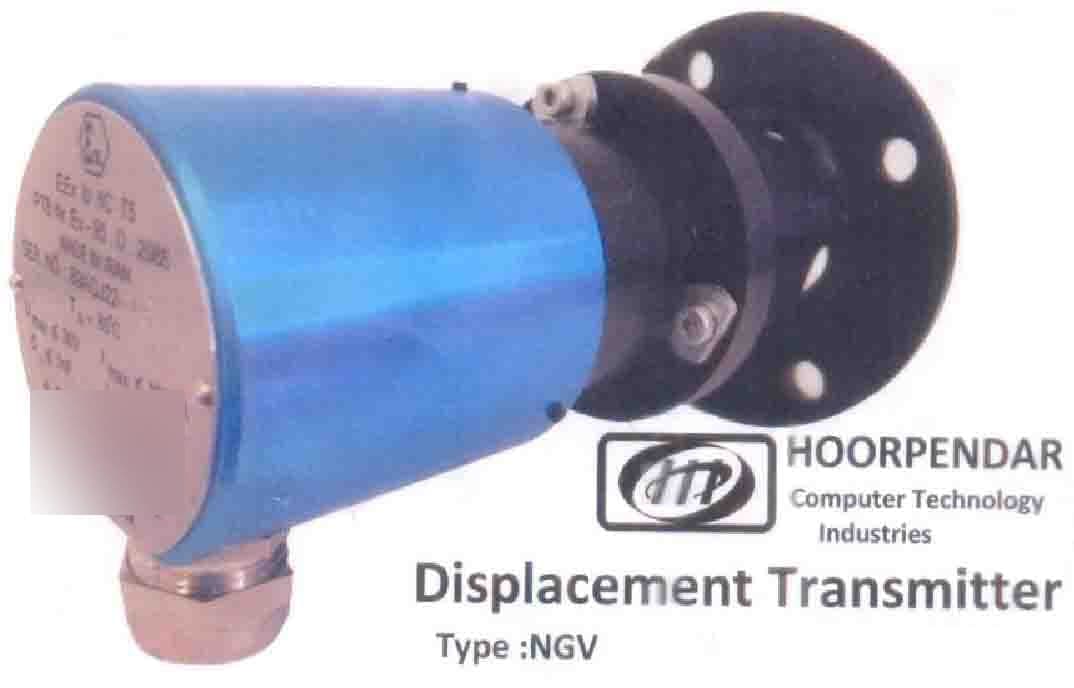

NGV displacement transmitter
Technical data
| Range | ±45° |
|---|---|
| Output | 4–20 mA |
| Pressure (in-actuator version) | 60 bar |
Related projects
- Contactless inlet guide vane position sensor for a gas turbineSirri Island · 2021
