Model: SECON-50 · SECON-30
Excitation for brushless synchronous motors and generators
These low-current systems excite brushless and two-stage synchronous motors and generators. The family also includes excitation control and starters for high-power pumping-station motors.
Features
- SECON-50: up to 50 A, transistor design
- SECON-30: up to 30 A, thyristor design with automatic and manual modes
- Rotor winding crowbar protection matched to the machine
- Automatic voltage and power-factor control for synchronous motors
Applications
- High-power synchronous motors
- Pumping and compression stations
- Steel, rail and manufacturing plants
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

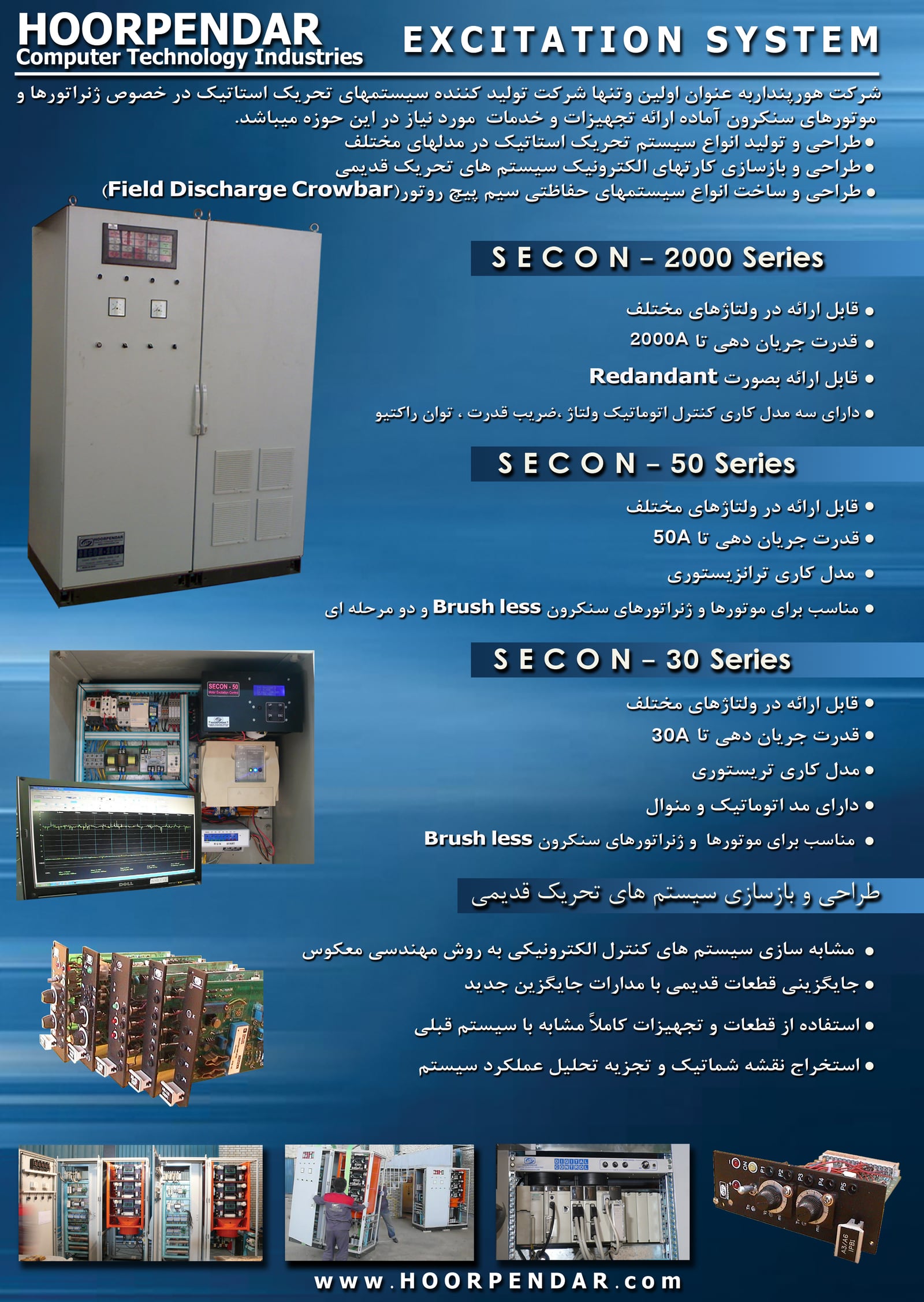

SECON-50 and SECON-30 catalogue sheet
