Model: PSB-1000
Portable switching battery charger
Charges lead-acid and alkaline batteries in the 24 V range, designed to the Iranian petrochemical standard for battery chargers.
Features
- Initial, boost, float and manual power-supply modes
- Set up from the front display; charge voltage and current stay under control throughout
- Fault log and a fault relay output
- IP54, up to 90 % non-condensing humidity
- 310 × 290 × 250 mm light, portable metal case
Applications
- Oil and gas plants and stations
- Substations and DC systems
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteWe install, commission and support this equipment in Ahvaz and across Khuzestan. Our projects and support in Khuzestan
Catalogue and photos
Select a sheet to open it at full size.

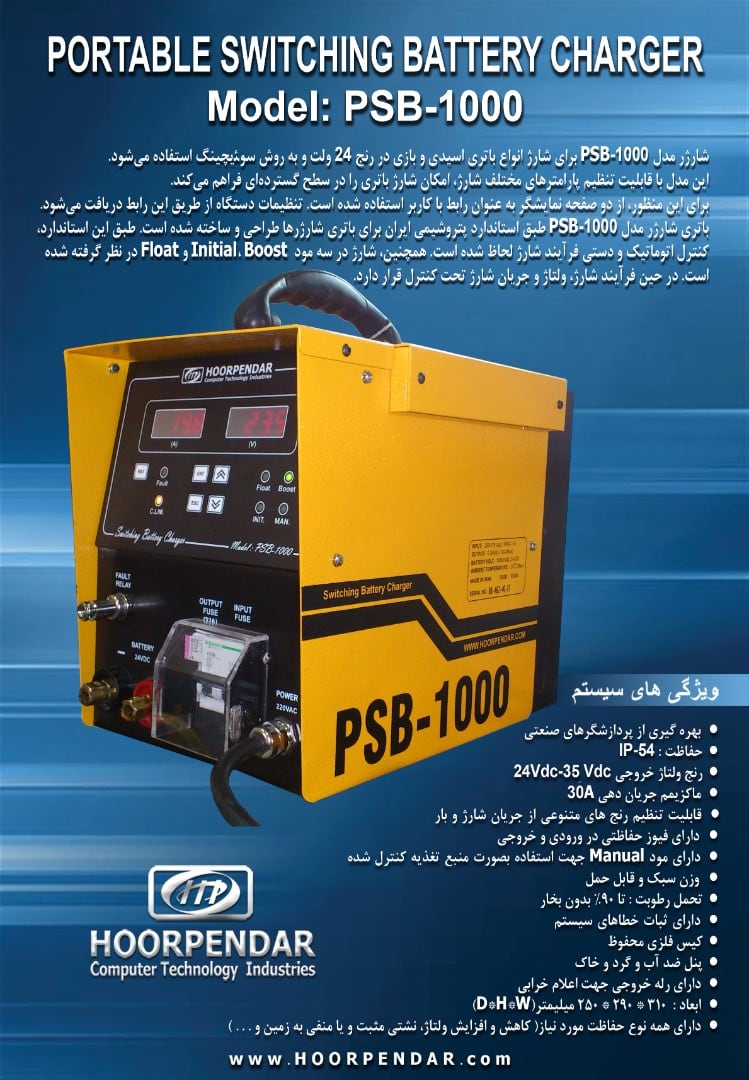

PSB-1000 catalogue sheet
Technical data
| Output | 24 – 35 V DC, up to 30 A |
|---|---|
| Protection | IP54 |
Related projects
- 24 V / 20 A switching battery chargerAghajari · 2021
