Model: MPS · MCI-6447 · MCI-2420 · MCP-9000
Multichannel process and temperature monitors
Power plants and oil facilities often need to watch more than 60 temperature points. The MPS family takes up to 32 inputs, and 64-, 24-, 9- and 8-channel temperature monitors are also available.
Features
- RTD, TC, V and mA inputs; four analog inputs per card
- MPS-D16 touch LCD or digital display; MNL, AUT and MAX modes
- Two alarm relays per card rated 3 A at 14 V DC or 2 A at 120 V AC, programmable for heating or cooling
- RS-485 link from the cards to the display, which can sit away from the panel
Applications
- Hydroelectric plants
- Thermal power plants
- Oil and gas plants and stations
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

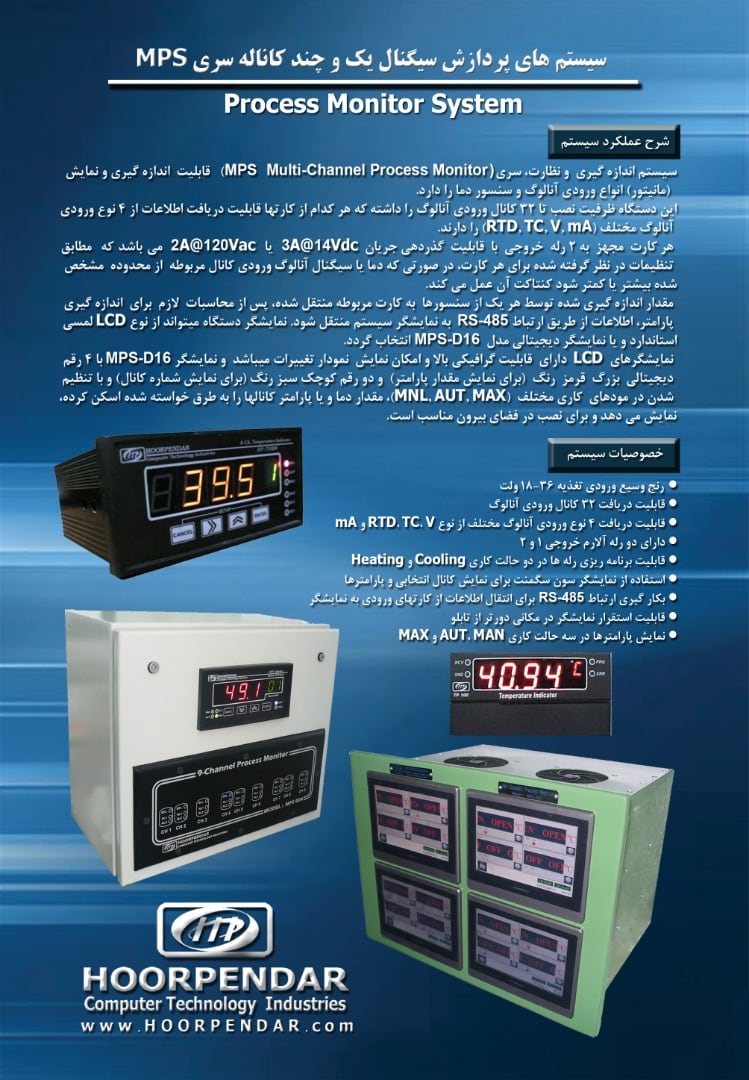

MPS process monitor system catalogue sheet

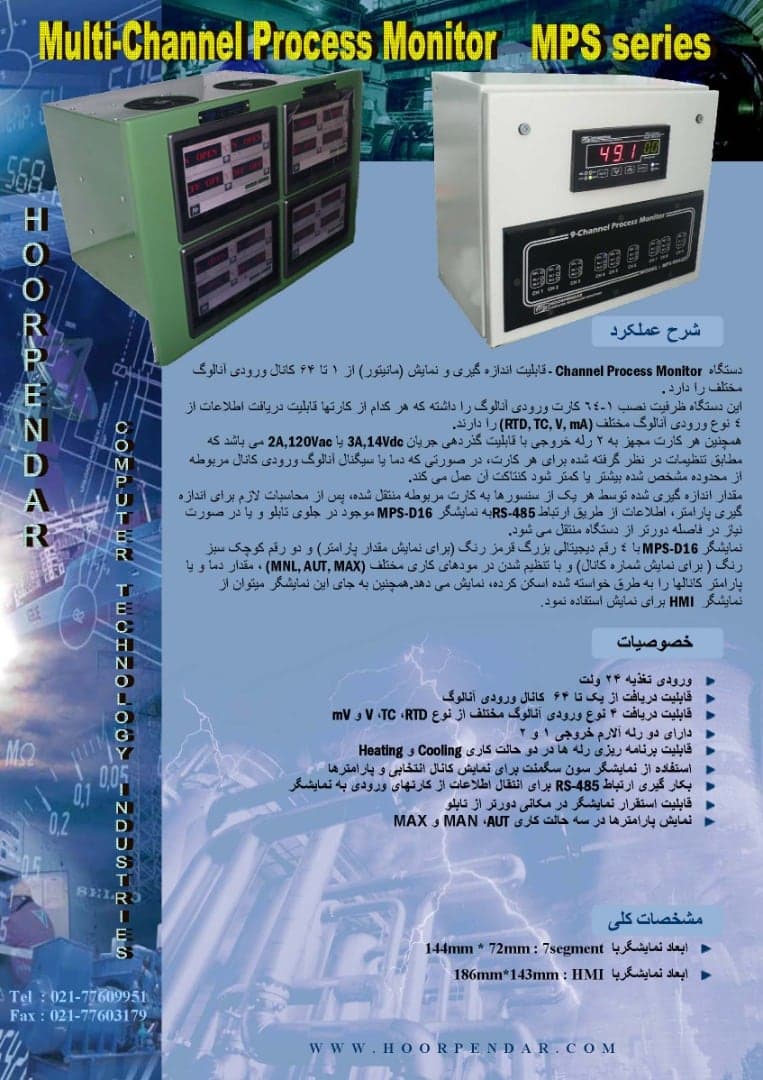

MPS series multichannel monitor catalogue sheet

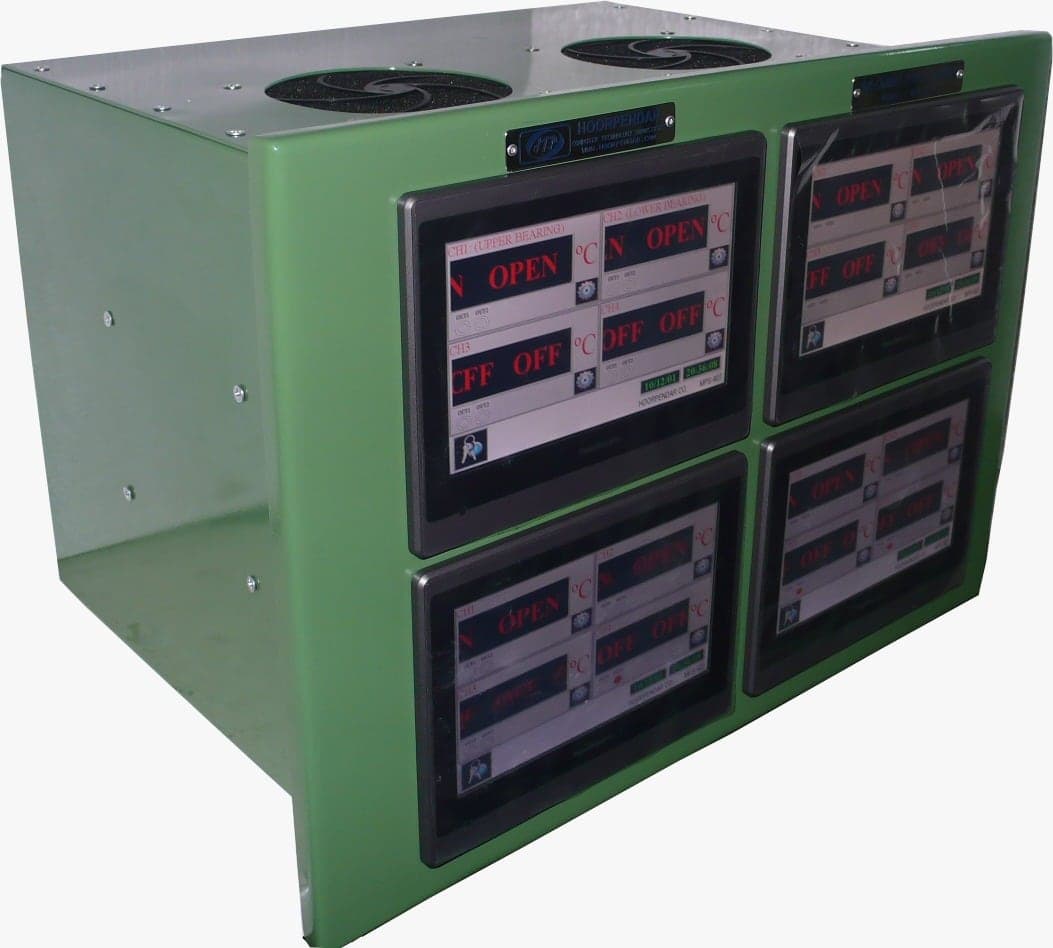

Bearing temperature panel with four touch displays

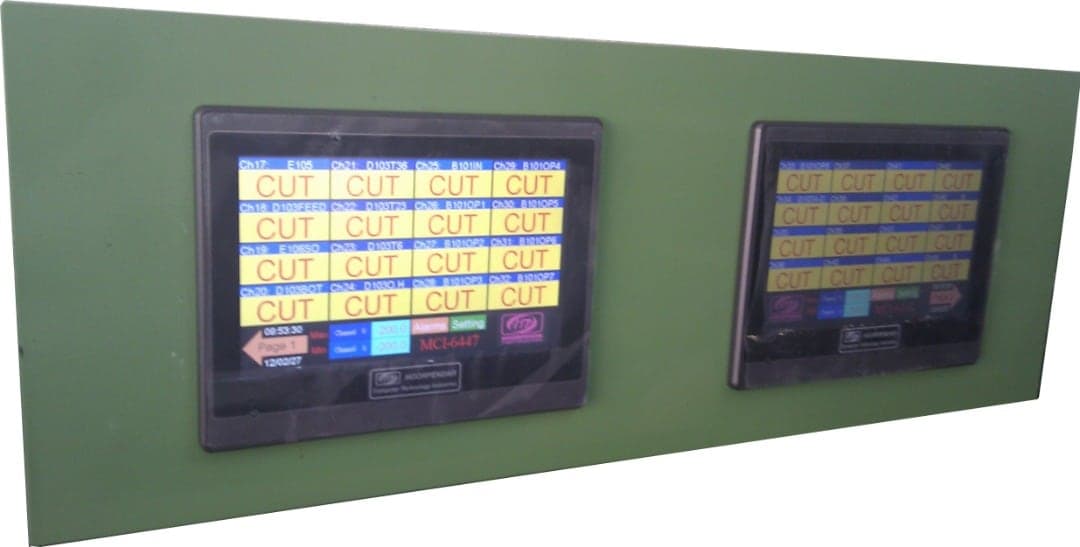

MCI-6447 64-channel temperature monitor
Technical data
| Channels | up to 64 (MPS), 8 – 64 (monitors) |
|---|---|
| Supply | 18 – 36 V DC |
| Display size | 144 × 72 mm (7-segment), 186 × 143 mm (HMI) |
